BEARING SPECIFICATION / NJ214

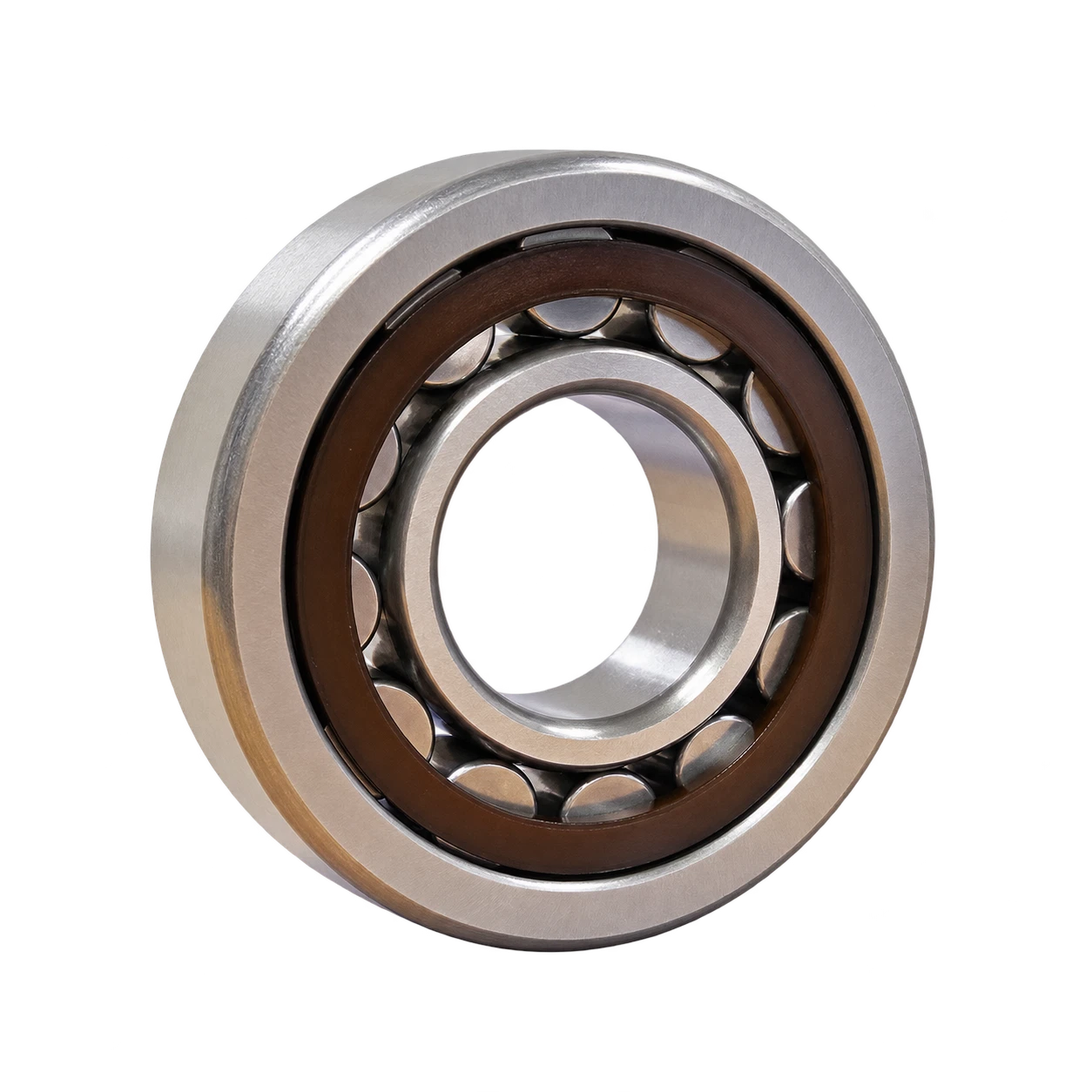

NJ214 Cylindrical Roller Bearing
70 × 125 × 24 mm · Radial capacity for demanding rotating systems. Compare the sourced reference data and specify your SANJ requirement.
Cylindrical Roller Bearings
NJ214 at a glance
NJ214 identifies a cylindrical roller bearing reference with 70 mm bore, 125 mm outside diameter and 24 mm overall width or height.
- Bore / d
- 70 mm
- Outside / D
- 125 mm
- Width / B
- 24 mm
Cylindrical rollers provide radial load capacity. NU, NJ and other ring arrangements differ in axial location and displacement capability.
Reference configuration: NJ214R
Ratings below belong to the identified JTEKT / Koyo source record. SANJ material, internal design, performance and supply scope require a confirmed quotation and datasheet.
Ratings below belong to the identified JTEKT / Koyo source record. SANJ material, internal design, performance and supply scope require a confirmed quotation and datasheet.
REFERENCE SPECIFICATION
All the details.
One clear source.
Full factual values from the source designation NJ214R. Mounting dimensions and reference mass relate to that design; they must be checked against the final SANJ drawing.
Load ratings: kN · dimensions: mm · speed: min⁻¹ · mass: kg
| Parameter | Reference value |
|---|---|
| d | 70 mm |
| D | 125 mm |
| B | 24 mm |
| r(min.) | 1.5 mm |
| r1(min.) | 1.5 mm |
| Fw | 83.5 mm |
| Ew | - mm |
| Basic load ratings : Cr | 148 kN |
| Basic load ratings : C0r | 137 kN |
| Fatigue load limit : Cu | 19.0 kN |
| Limiting speeds(Grease lub.) | 5000 min-1 |
| Limiting speeds(Oil lub.) | 6000 min-1 |
| sd1 | - mm |
| B1 | - mm |
| B2 | - mm |
| da(min.) | - mm |
| db(min.) | 78 mm |
| db(max.) | 82 mm |
| dc(min.) | - mm |
| dd(min.) | - mm |
| Da(max.) | 117 mm |
| Db(max.) | - mm |
| Db(min.) | - mm |
| ra(max.) | 1.5 mm |
| rb(max.) | 1.5 mm |
| Mass(Refer.) | 1.20 kg |
SELECTION CONTEXT
Match the bearing
to its duty.
NJ214 belongs to the cylindrical roller bearings family. Its reference envelope is 70 mm bore, 125 mm outside diameter and 24 mm overall width or height.
Cylindrical rollers provide radial load capacity. NU, NJ and other ring arrangements differ in axial location and displacement capability.
For a manufacturing enquiry, provide the complete designation and operating conditions. Matching the dimensional envelope alone does not confirm interchangeability or equivalent performance.
Is the same size a direct replacement?
No. Matching 70 × 125 × 24 mm establishes the boundary dimensions. The full designation, tolerances, clearance, contact angle or roller arrangement, seals, cage, lubrication and performance must also be checked.
Understand bearing load ratings →PREPARE A USEFUL ENQUIRY
Specify what the model
number leaves open.
A complete brief reduces assumptions and gives the quotation a clear technical basis.
Operating duty
Radial and axial loads, speed, temperature, lubrication, fits, environment and expected service.
Supply requirement
Quantity, destination, packing, inspection records, drawing approval and delivery requirement.
