BEARING SPECIFICATION / NJ207

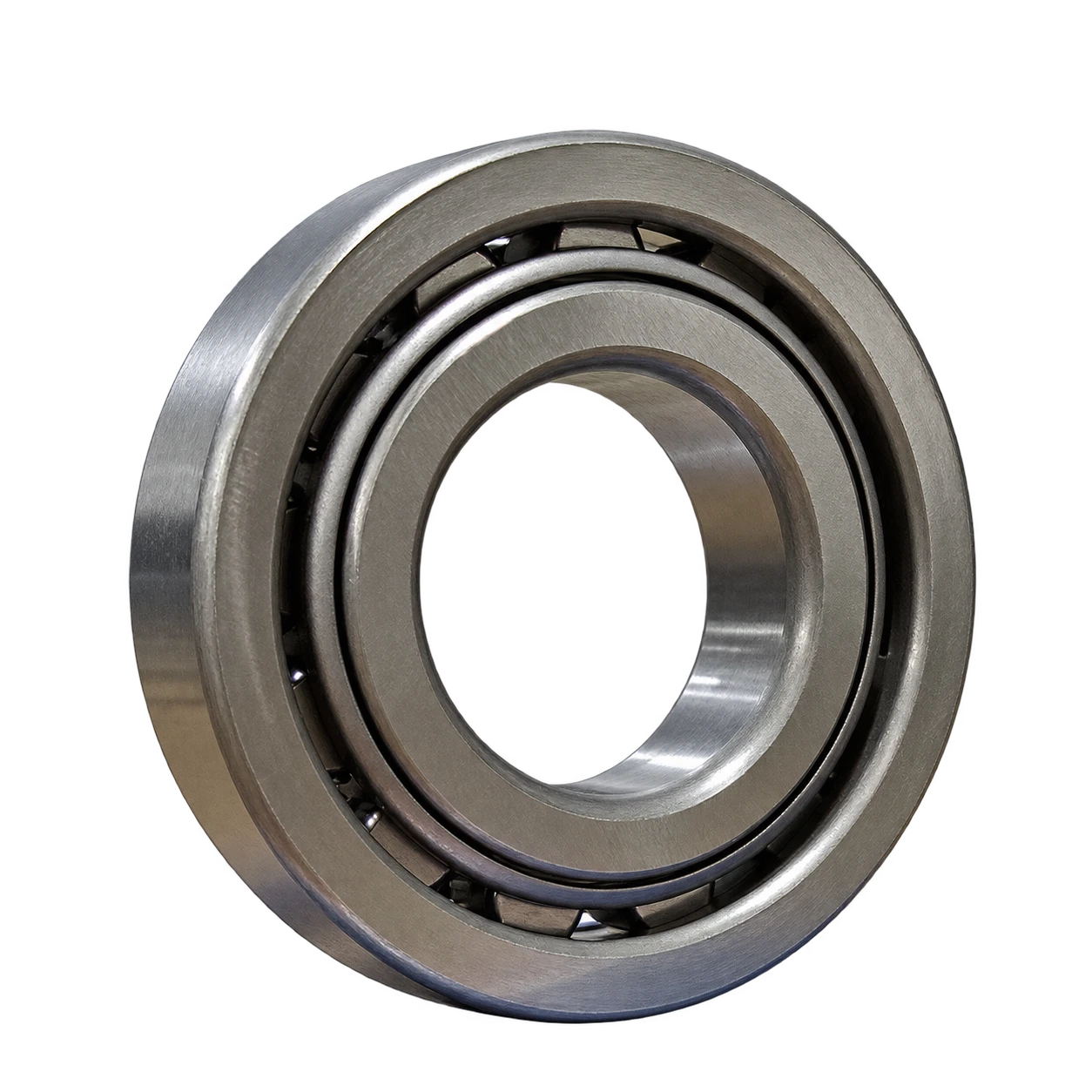

NJ207 Cylindrical Roller Bearing
35 × 72 × 17 mm · Radial capacity for demanding rotating systems. Compare the sourced reference data and specify your SANJ requirement.
Cylindrical Roller Bearings
NJ207 at a glance
NJ207 identifies a cylindrical roller bearing reference with 35 mm bore, 72 mm outside diameter and 17 mm overall width or height.
- Bore / d
- 35 mm
- Outside / D
- 72 mm
- Width / B
- 17 mm
Cylindrical rollers provide radial load capacity. NU, NJ and other ring arrangements differ in axial location and displacement capability.
Reference configuration: NJ207R
Ratings below belong to the identified JTEKT / Koyo source record. SANJ material, internal design, performance and supply scope require a confirmed quotation and datasheet.
Ratings below belong to the identified JTEKT / Koyo source record. SANJ material, internal design, performance and supply scope require a confirmed quotation and datasheet.
REFERENCE SPECIFICATION
All the details.
One clear source.
Full factual values from the source designation NJ207R. Mounting dimensions and reference mass relate to that design; they must be checked against the final SANJ drawing.
Load ratings: kN · dimensions: mm · speed: min⁻¹ · mass: kg
| Parameter | Reference value |
|---|---|
| d | 35 mm |
| D | 72 mm |
| B | 17 mm |
| r(min.) | 1.1 mm |
| r1(min.) | 0.6 mm |
| Fw | 44 mm |
| Ew | - mm |
| Basic load ratings : Cr | 62.9 kN |
| Basic load ratings : C0r | 50.2 kN |
| Fatigue load limit : Cu | 6.55 kN |
| Limiting speeds(Grease lub.) | 9300 min-1 |
| Limiting speeds(Oil lub.) | 11000 min-1 |
| sd1 | - mm |
| B1 | - mm |
| B2 | - mm |
| da(min.) | - mm |
| db(min.) | 39 mm |
| db(max.) | 43 mm |
| dc(min.) | - mm |
| dd(min.) | - mm |
| Da(max.) | 65.5 mm |
| Db(max.) | - mm |
| Db(min.) | - mm |
| ra(max.) | 1 mm |
| rb(max.) | 0.6 mm |
| Mass(Refer.) | 0.315 kg |
SELECTION CONTEXT
Match the bearing
to its duty.
NJ207 belongs to the cylindrical roller bearings family. Its reference envelope is 35 mm bore, 72 mm outside diameter and 17 mm overall width or height.
Cylindrical rollers provide radial load capacity. NU, NJ and other ring arrangements differ in axial location and displacement capability.
For a manufacturing enquiry, provide the complete designation and operating conditions. Matching the dimensional envelope alone does not confirm interchangeability or equivalent performance.
Is the same size a direct replacement?
No. Matching 35 × 72 × 17 mm establishes the boundary dimensions. The full designation, tolerances, clearance, contact angle or roller arrangement, seals, cage, lubrication and performance must also be checked.
Understand bearing load ratings →PREPARE A USEFUL ENQUIRY
Specify what the model
number leaves open.
A complete brief reduces assumptions and gives the quotation a clear technical basis.
Operating duty
Radial and axial loads, speed, temperature, lubrication, fits, environment and expected service.
Supply requirement
Quantity, destination, packing, inspection records, drawing approval and delivery requirement.
