Configuration
Full designation, seals or shields, accuracy, clearance, cage, material and any matched arrangement.
BEARING SPECIFICATION / 7314

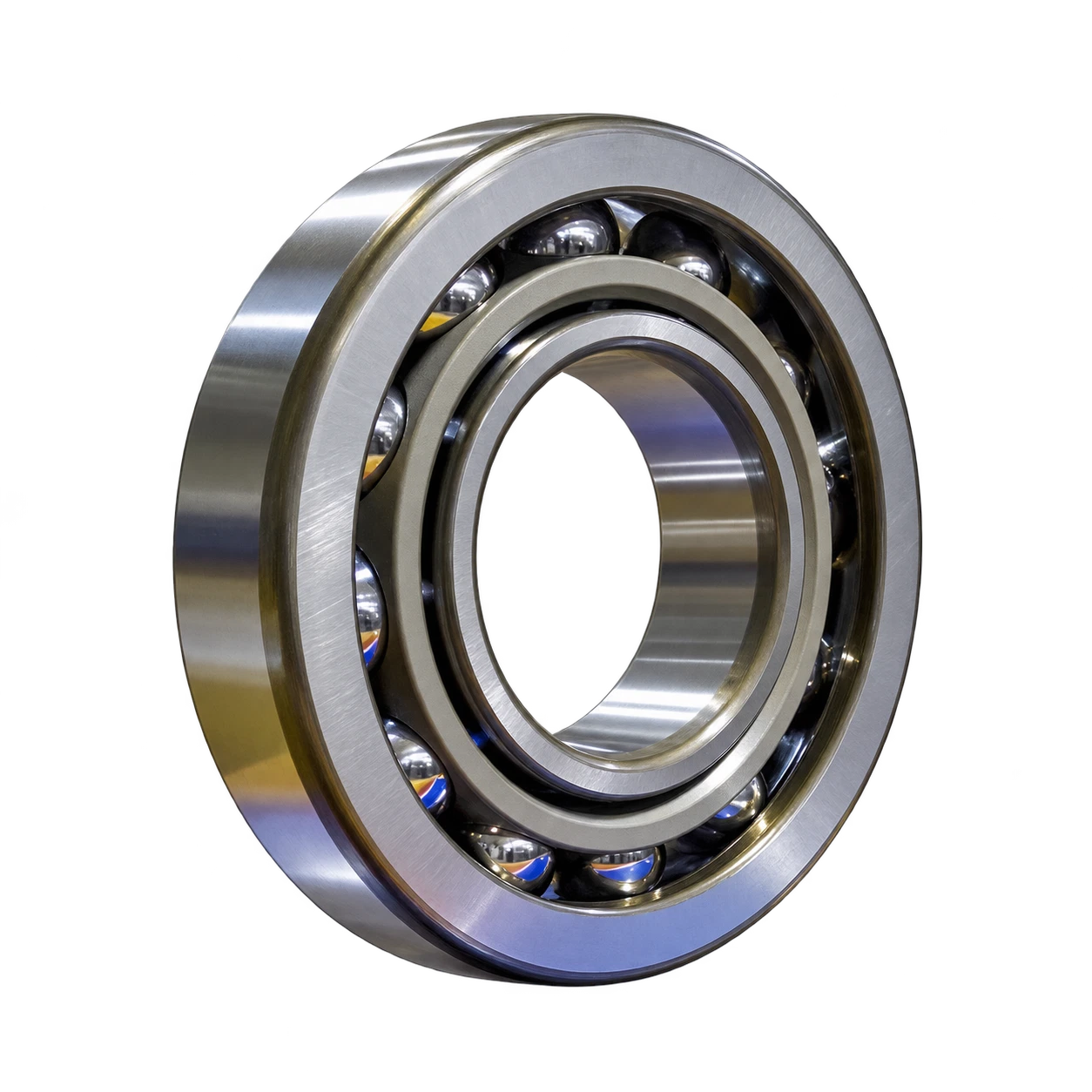

7314 Angular Contact Ball Bearing
70 × 150 × 35 mm · Combined loads. Controlled axial support. Compare the sourced reference data and specify your SANJ requirement.
Angular Contact Ball Bearings
7314 at a glance
7314 identifies a angular contact ball bearing reference with 70 mm bore, 150 mm outside diameter and 35 mm overall width or height.
- Bore / d
- 70 mm
- Outside / D
- 150 mm
- Width / B
- 35 mm
A contact angle supports combined radial and axial loads. A single row supports axial load in one direction; paired arrangements require preload and matching to be specified.
Reference configuration: 7314
Ratings below belong to the identified JTEKT / Koyo source record. SANJ material, internal design, performance and supply scope require a confirmed quotation and datasheet.
Ratings below belong to the identified JTEKT / Koyo source record. SANJ material, internal design, performance and supply scope require a confirmed quotation and datasheet.
REFERENCE SPECIFICATION
All the details.
One clear source.
Full factual values from the source designation 7314. Mounting dimensions and reference mass relate to that design; they must be checked against the final SANJ drawing.
Load ratings: kN · dimensions: mm · speed: min⁻¹ · mass: kg
| Parameter | Reference value |
|---|---|
| d | 70 mm |
| D | 150 mm |
| B | 35 mm |
| r(min.) | 2.1 mm |
| r1(min.) | 1.1 mm |
| Basic load ratings : Cr | 156 kN |
| Basic load ratings : C0r | 93.6 kN |
| Fatigue load limit : Cu | 6.20 kN |
| factor : f0 | - |
| Limiting speeds(Grease lub.) | 4300 min-1 |
| Limiting speeds(Oil lub.) | 5300 min-1 |
| Load center spread : a | 49.3 mm |
| da(min.) | 82 mm |
| Da(max.) | 138 mm |
| ra(max.) | 2 mm |
| Mass(Refer.) | 2.70 kg |
SELECTION CONTEXT
Match the bearing
to its duty.
7314 belongs to the angular contact ball bearings family. Its reference envelope is 70 mm bore, 150 mm outside diameter and 35 mm overall width or height.
A contact angle supports combined radial and axial loads. A single row supports axial load in one direction; paired arrangements require preload and matching to be specified.
For a manufacturing enquiry, provide the complete designation and operating conditions. Matching the dimensional envelope alone does not confirm interchangeability or equivalent performance.
Is the same size a direct replacement?
No. Matching 70 × 150 × 35 mm establishes the boundary dimensions. The full designation, tolerances, clearance, contact angle or roller arrangement, seals, cage, lubrication and performance must also be checked.
Understand bearing load ratings →PREPARE A USEFUL ENQUIRY
Specify what the model
number leaves open.
A complete brief reduces assumptions and gives the quotation a clear technical basis.
Operating duty
Radial and axial loads, speed, temperature, lubrication, fits, environment and expected service.
Supply requirement
Quantity, destination, packing, inspection records, drawing approval and delivery requirement.
CONTINUE COMPARING
More in this bearing family.
Reference imageAngular Contact Ball Bearings

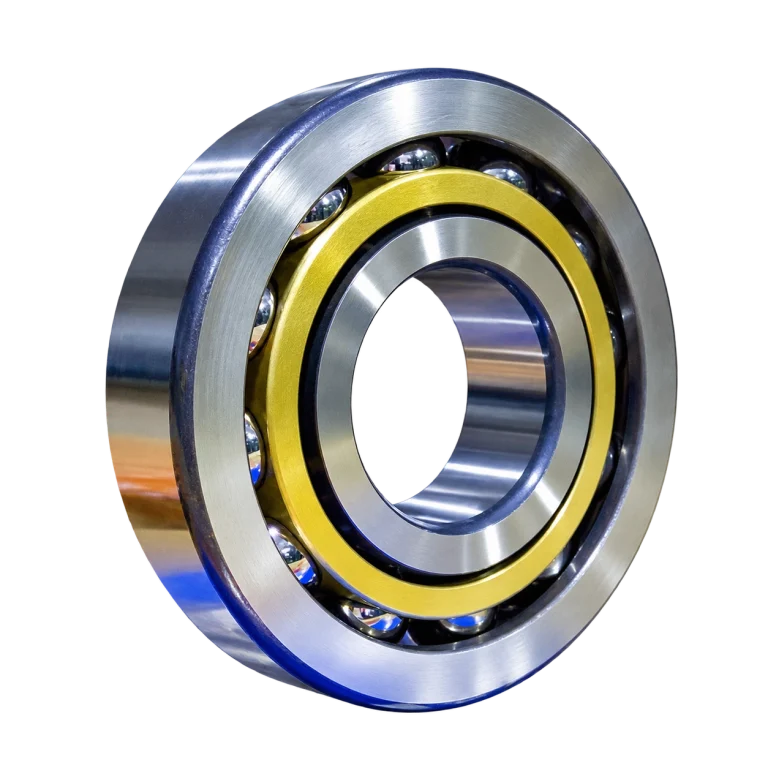

7313 ↗
