Configuration
Full designation, seals or shields, accuracy, clearance, cage, material and any matched arrangement.
BEARING SPECIFICATION / 7318

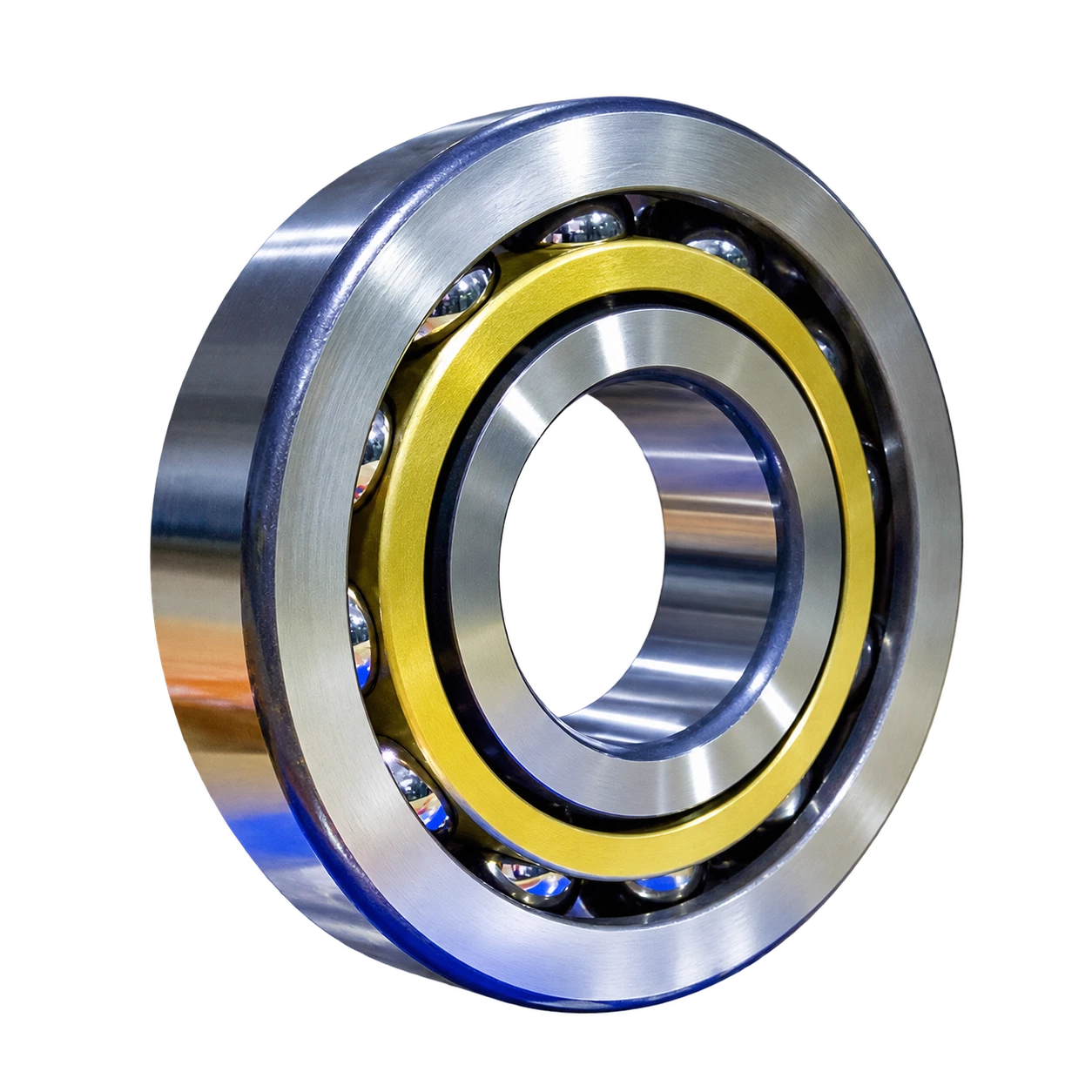

7318 Angular Contact Ball Bearing
90 × 190 × 43 mm · Combined loads. Controlled axial support. Compare the sourced reference data and specify your SANJ requirement.
Angular Contact Ball Bearings
7318 at a glance
7318 identifies a angular contact ball bearing reference with 90 mm bore, 190 mm outside diameter and 43 mm overall width or height.
- Bore / d
- 90 mm
- Outside / D
- 190 mm
- Width / B
- 43 mm
A contact angle supports combined radial and axial loads. A single row supports axial load in one direction; paired arrangements require preload and matching to be specified.
Reference configuration: 7318
Ratings below belong to the identified JTEKT / Koyo source record. SANJ material, internal design, performance and supply scope require a confirmed quotation and datasheet.
Ratings below belong to the identified JTEKT / Koyo source record. SANJ material, internal design, performance and supply scope require a confirmed quotation and datasheet.
REFERENCE SPECIFICATION
All the details.
One clear source.
Full factual values from the source designation 7318. Mounting dimensions and reference mass relate to that design; they must be checked against the final SANJ drawing.
Load ratings: kN · dimensions: mm · speed: min⁻¹ · mass: kg
| Parameter | Reference value |
|---|---|
| d | 90 mm |
| D | 190 mm |
| B | 43 mm |
| r(min.) | 3 mm |
| r1(min.) | 1.1 mm |
| Basic load ratings : Cr | 213 kN |
| Basic load ratings : C0r | 147 kN |
| Fatigue load limit : Cu | 6.40 kN |
| factor : f0 | - |
| Limiting speeds(Grease lub.) | 3300 min-1 |
| Limiting speeds(Oil lub.) | 4100 min-1 |
| Load center spread : a | 61.9 mm |
| da(min.) | 104 mm |
| Da(max.) | 176 mm |
| ra(max.) | 2.5 mm |
| Mass(Refer.) | 5.30 kg |
SELECTION CONTEXT
Match the bearing
to its duty.
7318 belongs to the angular contact ball bearings family. Its reference envelope is 90 mm bore, 190 mm outside diameter and 43 mm overall width or height.
A contact angle supports combined radial and axial loads. A single row supports axial load in one direction; paired arrangements require preload and matching to be specified.
For a manufacturing enquiry, provide the complete designation and operating conditions. Matching the dimensional envelope alone does not confirm interchangeability or equivalent performance.
Is the same size a direct replacement?
No. Matching 90 × 190 × 43 mm establishes the boundary dimensions. The full designation, tolerances, clearance, contact angle or roller arrangement, seals, cage, lubrication and performance must also be checked.
Understand bearing load ratings →PREPARE A USEFUL ENQUIRY
Specify what the model
number leaves open.
A complete brief reduces assumptions and gives the quotation a clear technical basis.
Operating duty
Radial and axial loads, speed, temperature, lubrication, fits, environment and expected service.
Supply requirement
Quantity, destination, packing, inspection records, drawing approval and delivery requirement.
