BEARING SPECIFICATION / 7312

7312 Angular Contact Ball Bearing

60 × 130 × 31 mm · Combined loads. Controlled axial support. Compare the sourced reference data and specify your SANJ requirement.

Original product concept visualization

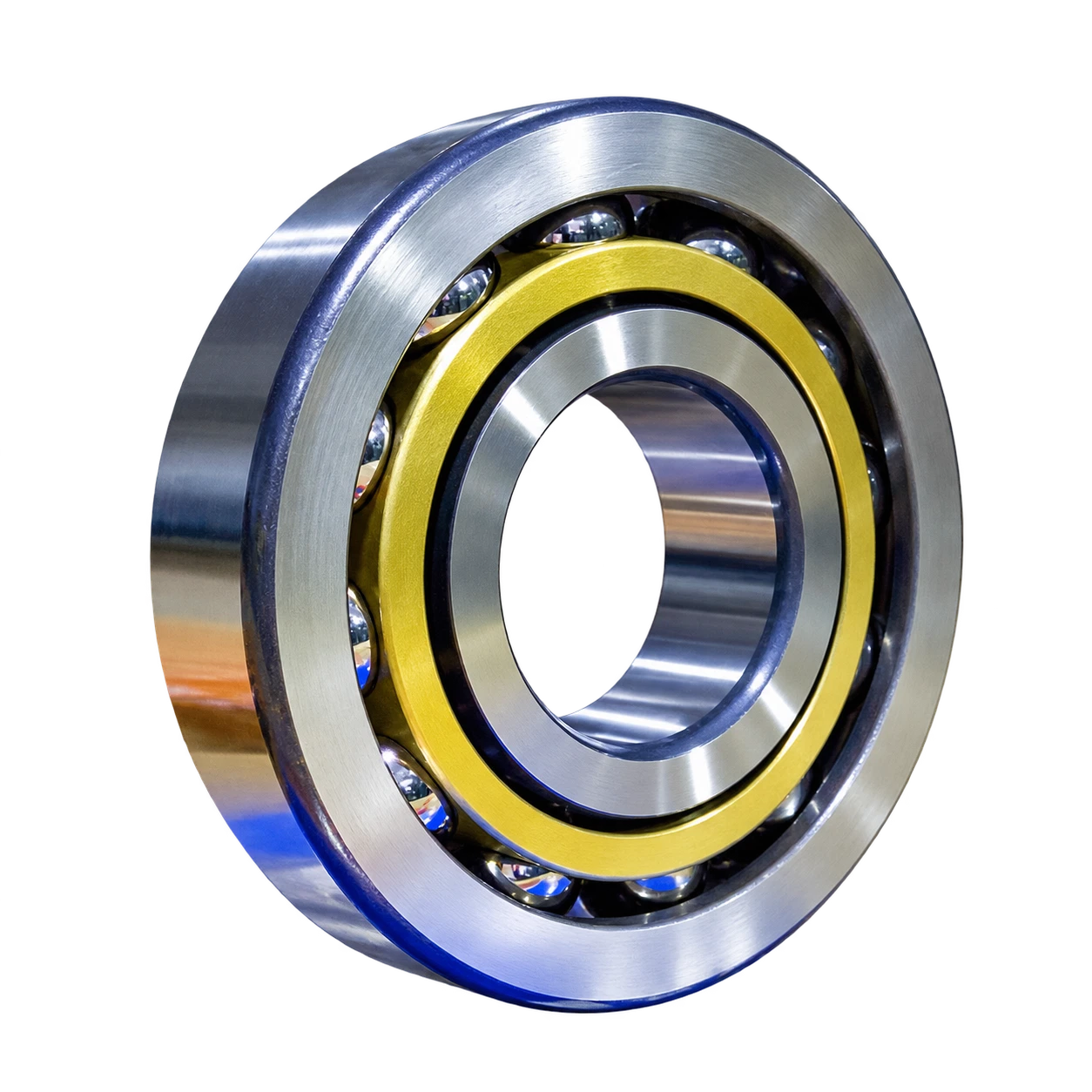

7312 angular contact ball bearing — retouched source reference image; supply configuration may differ — AI-retouched source reference image. Packaging and marks removed; configuration may differ from SANJ supply.

7312 dimensional schematic: bore 60 mm, outside diameter 130 mm, width 31 mm — Boundary dimension schematic · not a manufacturing drawing · not to scale

Angular Contact Ball Bearings

7312 at a glance

7312 identifies a angular contact ball bearing reference with 60 mm bore, 130 mm outside diameter and 31 mm overall width or height.

Bore / d: 60 mm
Outside / D: 130 mm
Width / B: 31 mm

A contact angle supports combined radial and axial loads. A single row supports axial load in one direction; paired arrangements require preload and matching to be specified.

Enquire about 7312 ↗Download reference data ↓

Reference configuration: 7312
Ratings below belong to the identified JTEKT / Koyo source record. SANJ material, internal design, performance and supply scope require a confirmed quotation and datasheet.

TECHNICAL SOURCEJTEKT / Koyo · 7312 ↗Source checked 2026-10-20Reference image source ↗

REFERENCE SPECIFICATION

All the details.
One clear source.

Full factual values from the source designation 7312. Mounting dimensions and reference mass relate to that design; they must be checked against the final SANJ drawing.

Load ratings: kN · dimensions: mm · speed: min⁻¹ · mass: kg

7312 — JTEKT / Koyo reference data
Parameter	Reference value
d	60 mm
D	130 mm
B	31 mm
r(min.)	2.1 mm
r1(min.)	1.1 mm
Basic load ratings : Cr	123 kN
Basic load ratings : C0r	71.6 kN
Fatigue load limit : Cu	5.00 kN
factor : f0	-
Limiting speeds(Grease lub.)	4900 min-1
Limiting speeds(Oil lub.)	6100 min-1
Load center spread : a	43.2 mm
da(min.)	72 mm
Da(max.)	118 mm
ra(max.)	2 mm
Mass(Refer.)	1.81 kg

SELECTION CONTEXT

Match the bearing
to its duty.

7312 belongs to the angular contact ball bearings family. Its reference envelope is 60 mm bore, 130 mm outside diameter and 31 mm overall width or height.

A contact angle supports combined radial and axial loads. A single row supports axial load in one direction; paired arrangements require preload and matching to be specified.

For a manufacturing enquiry, provide the complete designation and operating conditions. Matching the dimensional envelope alone does not confirm interchangeability or equivalent performance.

Is the same size a direct replacement?

No. Matching 60 × 130 × 31 mm establishes the boundary dimensions. The full designation, tolerances, clearance, contact angle or roller arrangement, seals, cage, lubrication and performance must also be checked.

Understand bearing load ratings →

PREPARE A USEFUL ENQUIRY

Specify what the model
number leaves open.

A complete brief reduces assumptions and gives the quotation a clear technical basis.

Configuration

Full designation, seals or shields, accuracy, clearance, cage, material and any matched arrangement.

Operating duty

Radial and axial loads, speed, temperature, lubrication, fits, environment and expected service.

Supply requirement

Quantity, destination, packing, inspection records, drawing approval and delivery requirement.
