7309 Angular Contact Ball Bearing

45 × 100 × 25 mm · Combined loads. Controlled axial support. Compare the sourced reference data and specify your SANJ requirement.

Original product concept visualization

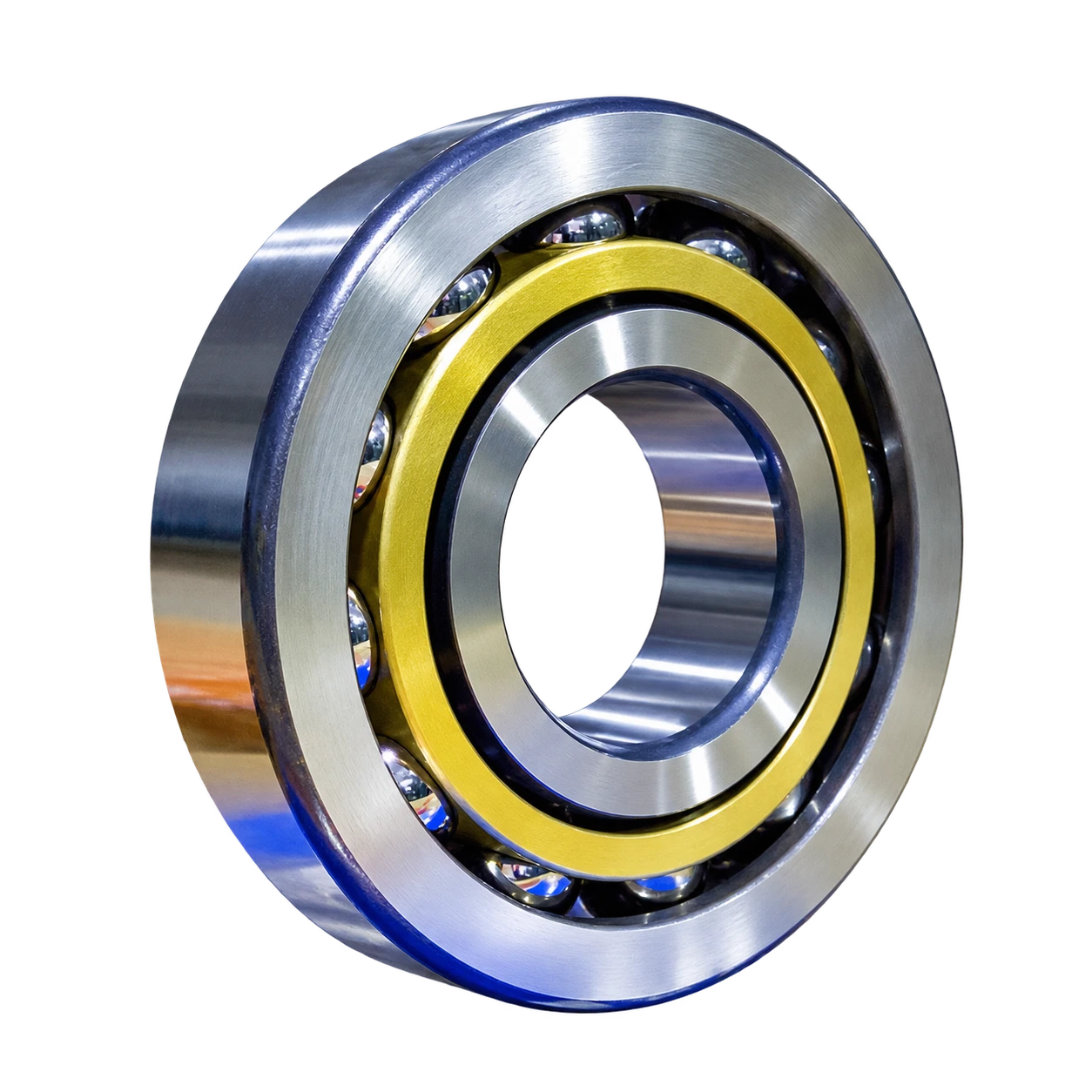

7309 angular contact ball bearing — retouched source reference image; supply configuration may differ — AI-retouched source reference image. Packaging and marks removed; configuration may differ from SANJ supply.

7309 dimensional schematic: bore 45 mm, outside diameter 100 mm, width 25 mm — Boundary dimension schematic · not a manufacturing drawing · not to scale

Angular Contact Ball Bearings

7309 at a glance

7309 identifies a angular contact ball bearing reference with 45 mm bore, 100 mm outside diameter and 25 mm overall width or height.

Bore / d: 45 mm
Outside / D: 100 mm
Width / B: 25 mm

A contact angle supports combined radial and axial loads. A single row supports axial load in one direction; paired arrangements require preload and matching to be specified.

Enquire about 7309 ↗Download reference data ↓

Reference configuration: 7309
Ratings below belong to the identified JTEKT / Koyo source record. SANJ material, internal design, performance and supply scope require a confirmed quotation and datasheet.

TECHNICAL SOURCEJTEKT / Koyo · 7309 ↗Source checked 2026-10-20Reference image source ↗

REFERENCE SPECIFICATION

All the details.
One clear source.

Full factual values from the source designation 7309. Mounting dimensions and reference mass relate to that design; they must be checked against the final SANJ drawing.

Load ratings: kN · dimensions: mm · speed: min⁻¹ · mass: kg

7309 — JTEKT / Koyo reference data
Parameter	Reference value
d	45 mm
D	100 mm
B	25 mm
r(min.)	1.5 mm
r1(min.)	1 mm
Basic load ratings : Cr	73.1 kN
Basic load ratings : C0r	40.4 kN
Fatigue load limit : Cu	2.80 kN
factor : f0	-
Limiting speeds(Grease lub.)	6500 min-1
Limiting speeds(Oil lub.)	8000 min-1
Load center spread : a	33.6 mm
da(min.)	53.5 mm
Da(max.)	91.5 mm
ra(max.)	1.5 mm
Mass(Refer.)	0.875 kg

SELECTION CONTEXT

Match the bearing
to its duty.

7309 belongs to the angular contact ball bearings family. Its reference envelope is 45 mm bore, 100 mm outside diameter and 25 mm overall width or height.

A contact angle supports combined radial and axial loads. A single row supports axial load in one direction; paired arrangements require preload and matching to be specified.

For a manufacturing enquiry, provide the complete designation and operating conditions. Matching the dimensional envelope alone does not confirm interchangeability or equivalent performance.

Is the same size a direct replacement?

No. Matching 45 × 100 × 25 mm establishes the boundary dimensions. The full designation, tolerances, clearance, contact angle or roller arrangement, seals, cage, lubrication and performance must also be checked.

Understand bearing load ratings →

PREPARE A USEFUL ENQUIRY

Specify what the model
number leaves open.

A complete brief reduces assumptions and gives the quotation a clear technical basis.

Configuration

Full designation, seals or shields, accuracy, clearance, cage, material and any matched arrangement.

Operating duty

Radial and axial loads, speed, temperature, lubrication, fits, environment and expected service.

Supply requirement

Quantity, destination, packing, inspection records, drawing approval and delivery requirement.
