BEARING SPECIFICATION / NU224

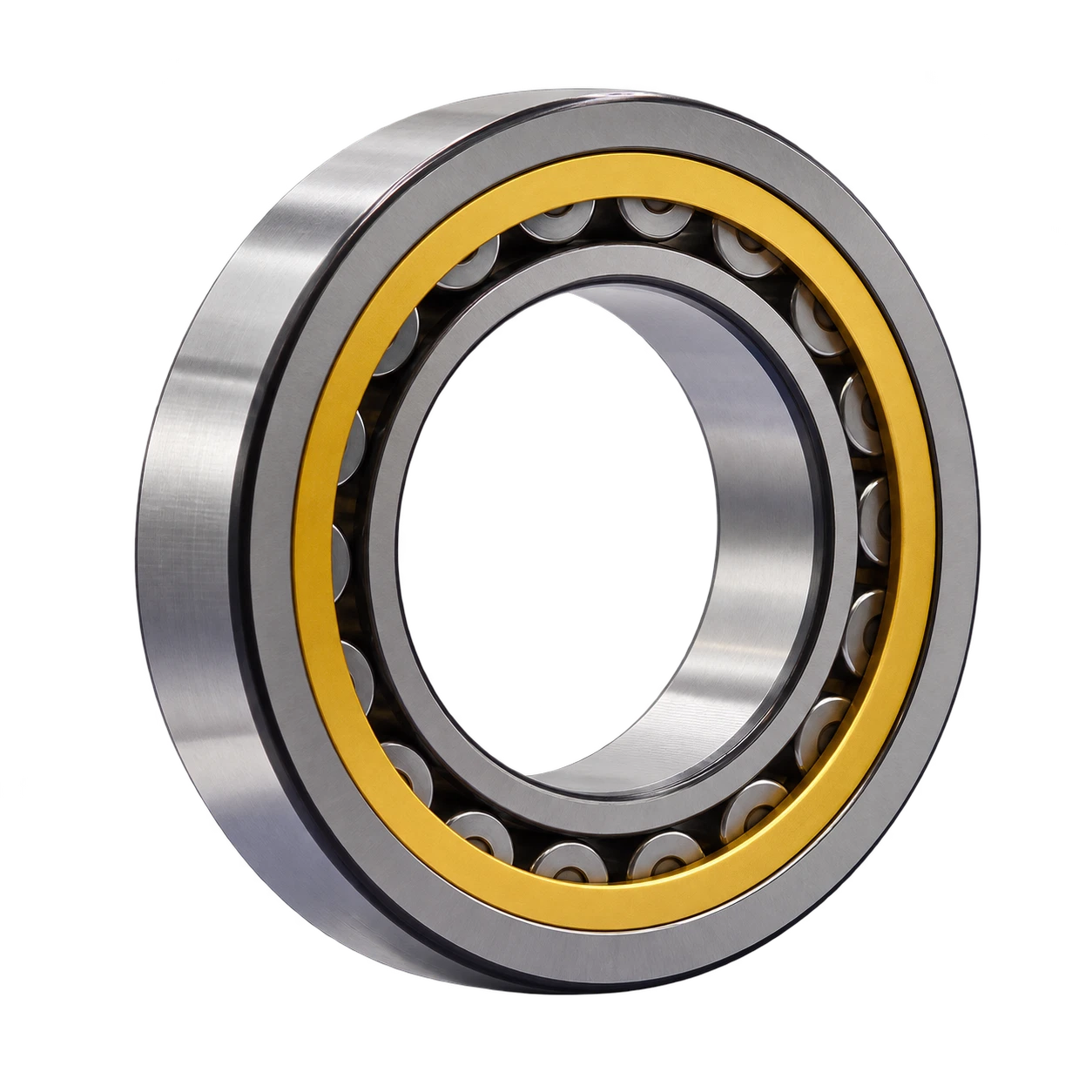

NU224 Cylindrical Roller Bearing
120 × 215 × 40 mm · Radial capacity for demanding rotating systems. Compare the sourced reference data and specify your SANJ requirement.
Cylindrical Roller Bearings
NU224 at a glance
NU224 identifies a cylindrical roller bearing reference with 120 mm bore, 215 mm outside diameter and 40 mm overall width or height.
- Bore / d
- 120 mm
- Outside / D
- 215 mm
- Width / B
- 40 mm
Cylindrical rollers provide radial load capacity. NU, NJ and other ring arrangements differ in axial location and displacement capability.
Reference configuration: NU224R
Ratings below belong to the identified JTEKT / Koyo source record. SANJ material, internal design, performance and supply scope require a confirmed quotation and datasheet.
Ratings below belong to the identified JTEKT / Koyo source record. SANJ material, internal design, performance and supply scope require a confirmed quotation and datasheet.
REFERENCE SPECIFICATION
All the details.
One clear source.
Full factual values from the source designation NU224R. Mounting dimensions and reference mass relate to that design; they must be checked against the final SANJ drawing.
Load ratings: kN · dimensions: mm · speed: min⁻¹ · mass: kg
| Parameter | Reference value |
|---|---|
| d | 120 mm |
| D | 215 mm |
| B | 40 mm |
| r(min.) | 2.1 mm |
| r1(min.) | 2.1 mm |
| Fw | 143.5 mm |
| Ew | - mm |
| Basic load ratings : Cr | 419 kN |
| Basic load ratings : C0r | 421 kN |
| Fatigue load limit : Cu | 57.6 kN |
| Limiting speeds(Grease lub.) | 2800 min-1 |
| Limiting speeds(Oil lub.) | 3400 min-1 |
| sd1 | - mm |
| B1 | - mm |
| B2 | - mm |
| da(min.) | - mm |
| db(min.) | 131 mm |
| db(max.) | 141 mm |
| dc(min.) | - mm |
| dd(min.) | - mm |
| Da(max.) | 204 mm |
| Db(max.) | - mm |
| Db(min.) | - mm |
| ra(max.) | 2 mm |
| rb(max.) | 2 mm |
| Mass(Refer.) | 5.85 kg |
SELECTION CONTEXT
Match the bearing
to its duty.
NU224 belongs to the cylindrical roller bearings family. Its reference envelope is 120 mm bore, 215 mm outside diameter and 40 mm overall width or height.
Cylindrical rollers provide radial load capacity. NU, NJ and other ring arrangements differ in axial location and displacement capability.
For a manufacturing enquiry, provide the complete designation and operating conditions. Matching the dimensional envelope alone does not confirm interchangeability or equivalent performance.
Is the same size a direct replacement?
No. Matching 120 × 215 × 40 mm establishes the boundary dimensions. The full designation, tolerances, clearance, contact angle or roller arrangement, seals, cage, lubrication and performance must also be checked.
Understand bearing load ratings →PREPARE A USEFUL ENQUIRY
Specify what the model
number leaves open.
A complete brief reduces assumptions and gives the quotation a clear technical basis.
Operating duty
Radial and axial loads, speed, temperature, lubrication, fits, environment and expected service.
Supply requirement
Quantity, destination, packing, inspection records, drawing approval and delivery requirement.
