BEARING SPECIFICATION / 51102

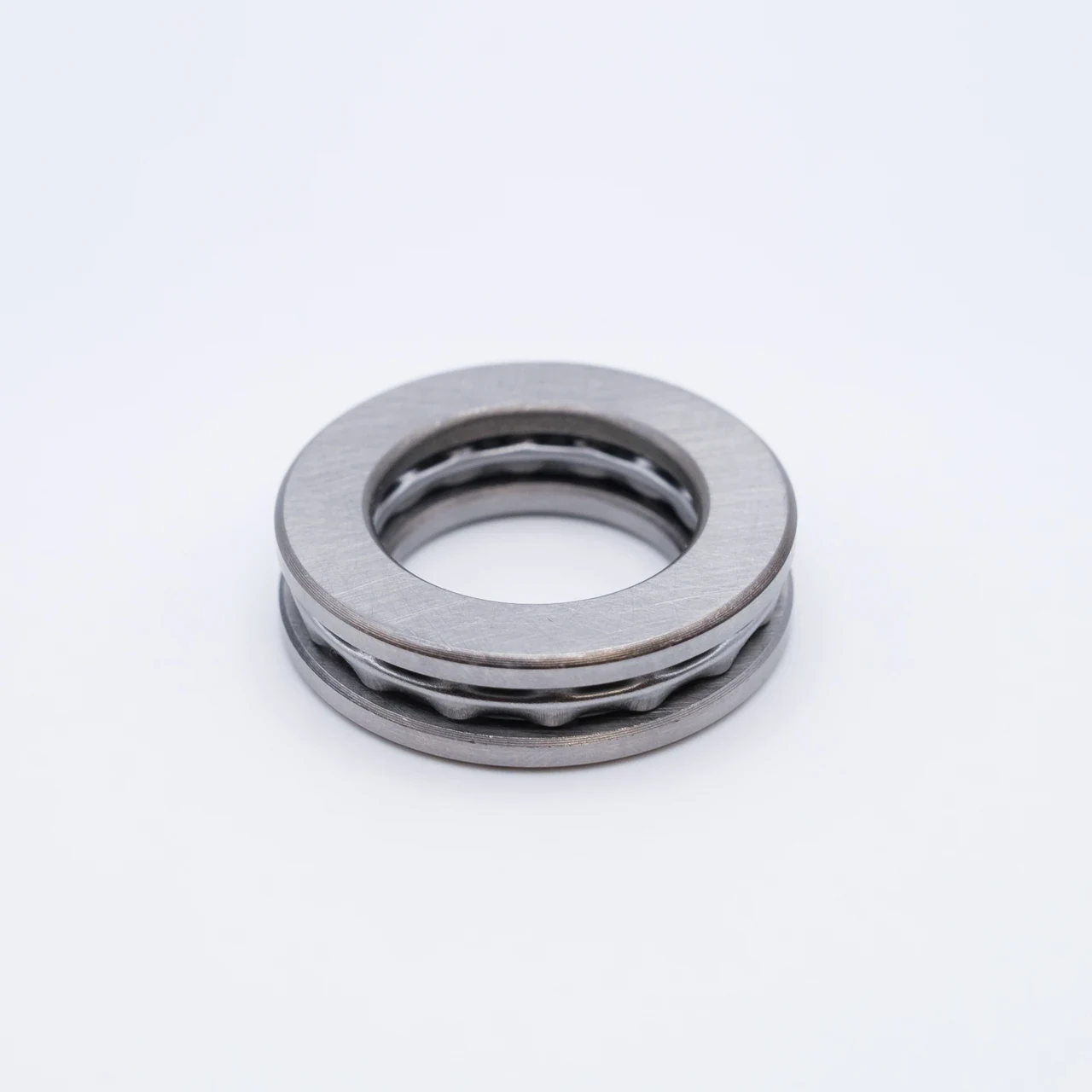

51102 Thrust Ball Bearing
15 × 28 × 9 mm · Axial support along the shaft. Compare the sourced reference data and specify your SANJ requirement.
Thrust Ball Bearings
51102 at a glance
51102 identifies a thrust ball bearing reference with 15 mm bore, 28 mm outside diameter and 9 mm overall width or height.
- Bore / d
- 15 mm
- Outside / D
- 28 mm
- Width / T
- 9 mm
Thrust ball bearings support axial load rather than radial load. Confirm load direction, shaft and housing washers, alignment and minimum load requirements.
Reference configuration: 51102
Ratings below belong to the identified JTEKT / Koyo source record. SANJ material, internal design, performance and supply scope require a confirmed quotation and datasheet.
Ratings below belong to the identified JTEKT / Koyo source record. SANJ material, internal design, performance and supply scope require a confirmed quotation and datasheet.
REFERENCE SPECIFICATION
All the details.
One clear source.
Full factual values from the source designation 51102. Mounting dimensions and reference mass relate to that design; they must be checked against the final SANJ drawing.
Load ratings: kN · dimensions: mm · speed: min⁻¹ · mass: kg
| Parameter | Reference value |
|---|---|
| d | 15 mm |
| D | 28 mm |
| T | 9 mm |
| r(min.) | 0.3 mm |
| Basic load ratings Ca | 13.2 kN |
| Basic load ratings C0a | 15.4 kN |
| Fatigue load limit : Cu | 0.76 kN |
| Limiting speeds(Grease lub.) | 6100 min-1 |
| Limiting speeds(Oil lub.) | 9400 min-1 |
| d1(max.) | 28 mm |
| D1(min.) | 16 mm |
| D2 | - mm |
| D3 | - mm |
| A | - mm |
| R | - mm |
| C | - mm |
| da(min.) | 23 mm |
| Da(max.) | 20 mm |
| ra(max.) | 0.3 mm |
| Mass(Refer.) | 0.024 kg |
SELECTION CONTEXT
Match the bearing
to its duty.
51102 belongs to the thrust ball bearings family. Its reference envelope is 15 mm bore, 28 mm outside diameter and 9 mm overall width or height.
Thrust ball bearings support axial load rather than radial load. Confirm load direction, shaft and housing washers, alignment and minimum load requirements.
For a manufacturing enquiry, provide the complete designation and operating conditions. Matching the dimensional envelope alone does not confirm interchangeability or equivalent performance.
Is the same size a direct replacement?
No. Matching 15 × 28 × 9 mm establishes the boundary dimensions. The full designation, tolerances, clearance, contact angle or roller arrangement, seals, cage, lubrication and performance must also be checked.
Understand bearing load ratings →PREPARE A USEFUL ENQUIRY
Specify what the model
number leaves open.
A complete brief reduces assumptions and gives the quotation a clear technical basis.
Operating duty
Radial and axial loads, speed, temperature, lubrication, fits, environment and expected service.
Supply requirement
Quantity, destination, packing, inspection records, drawing approval and delivery requirement.
