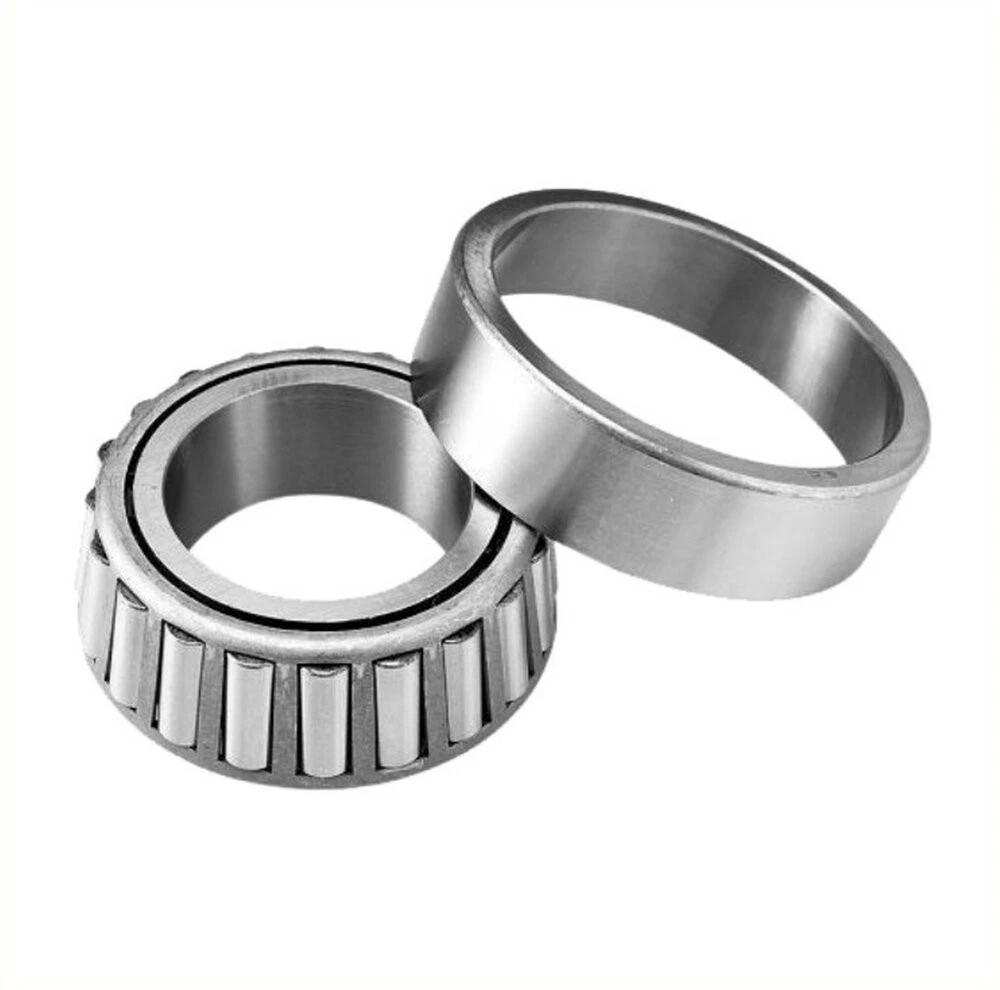

Original unbranded tapered roller bearing concept visualization

BEARING SPECIFICATION / 30220

30220 Tapered Roller Bearing

100 × 180 × 37 mm · A focused approach to combined load. Compare the sourced reference data and specify your SANJ requirement.

Original product concept visualization

30220 dimensional schematic: bore 100 mm, outside diameter 180 mm, width 37 mm — Boundary dimension schematic · not a manufacturing drawing · not to scale

Tapered Roller Bearings

30220 at a glance

30220 identifies a tapered roller bearing reference with 100 mm bore, 180 mm outside diameter and 37 mm overall width or height.

Bore / d: 100 mm
Outside / D: 180 mm
Width / T: 37 mm

Tapered rollers carry combined radial and axial load. Confirm cone and cup designations, overall width and arrangement before selecting a replacement.

Enquire about 30220 ↗Download reference data ↓

Reference configuration: 30220JR
Ratings below belong to the identified JTEKT / Koyo source record. SANJ material, internal design, performance and supply scope require a confirmed quotation and datasheet.

TECHNICAL SOURCEJTEKT / Koyo · 30220JR ↗Source checked 2026-10-20Reference image source ↗

REFERENCE SPECIFICATION

All the details.
One clear source.

Full factual values from the source designation 30220JR. Mounting dimensions and reference mass relate to that design; they must be checked against the final SANJ drawing.

Load ratings: kN · dimensions: mm · speed: min⁻¹ · mass: kg

30220 — JTEKT / Koyo reference data
Parameter	Reference value
d	100 mm
D	180 mm
T	37 mm
B	34 mm
C	29 mm
r(min.)	3 mm
r1(min.)	2.5 mm
Basic load ratings : Cr	323 kN
Basic load ratings : C0r	338 kN
Fatigue load limit : Cu	49.1 kN
Limiting speeds(Grease lub.)	2100 min-1
Limiting speeds(Oil lub.)	2800 min-1
Load center spread : a	36.8 mm
Constant e	0.42
Axial load factors : Y1	1.43
Axial load factors : Y0	0.79
da(min.)	114 mm
db(max.)	116 mm
Da(max.)	168 mm
da(min.)	157 mm
db(min.)	168 mm
Sa(min.)	5 mm
Sb(min.)	8 mm
ra(max.)	2.5 mm
rb(max.)	2 mm
Mass(Refer.)	3.83 kg

SELECTION CONTEXT

Match the bearing
to its duty.

30220 belongs to the tapered roller bearings family. Its reference envelope is 100 mm bore, 180 mm outside diameter and 37 mm overall width or height.

Tapered rollers carry combined radial and axial load. Confirm cone and cup designations, overall width and arrangement before selecting a replacement.

For a manufacturing enquiry, provide the complete designation and operating conditions. Matching the dimensional envelope alone does not confirm interchangeability or equivalent performance.

Is the same size a direct replacement?

No. Matching 100 × 180 × 37 mm establishes the boundary dimensions. The full designation, tolerances, clearance, contact angle or roller arrangement, seals, cage, lubrication and performance must also be checked.

Understand bearing load ratings →

PREPARE A USEFUL ENQUIRY

Specify what the model
number leaves open.

A complete brief reduces assumptions and gives the quotation a clear technical basis.

Configuration

Full designation, seals or shields, accuracy, clearance, cage, material and any matched arrangement.

Operating duty

Radial and axial loads, speed, temperature, lubrication, fits, environment and expected service.

Supply requirement

Quantity, destination, packing, inspection records, drawing approval and delivery requirement.
