BEARING SPECIFICATION / 30217

30217 Tapered Roller Bearing

85 × 150 × 30.5 mm · A focused approach to combined load. Compare the sourced reference data and specify your SANJ requirement.

Original product concept visualization

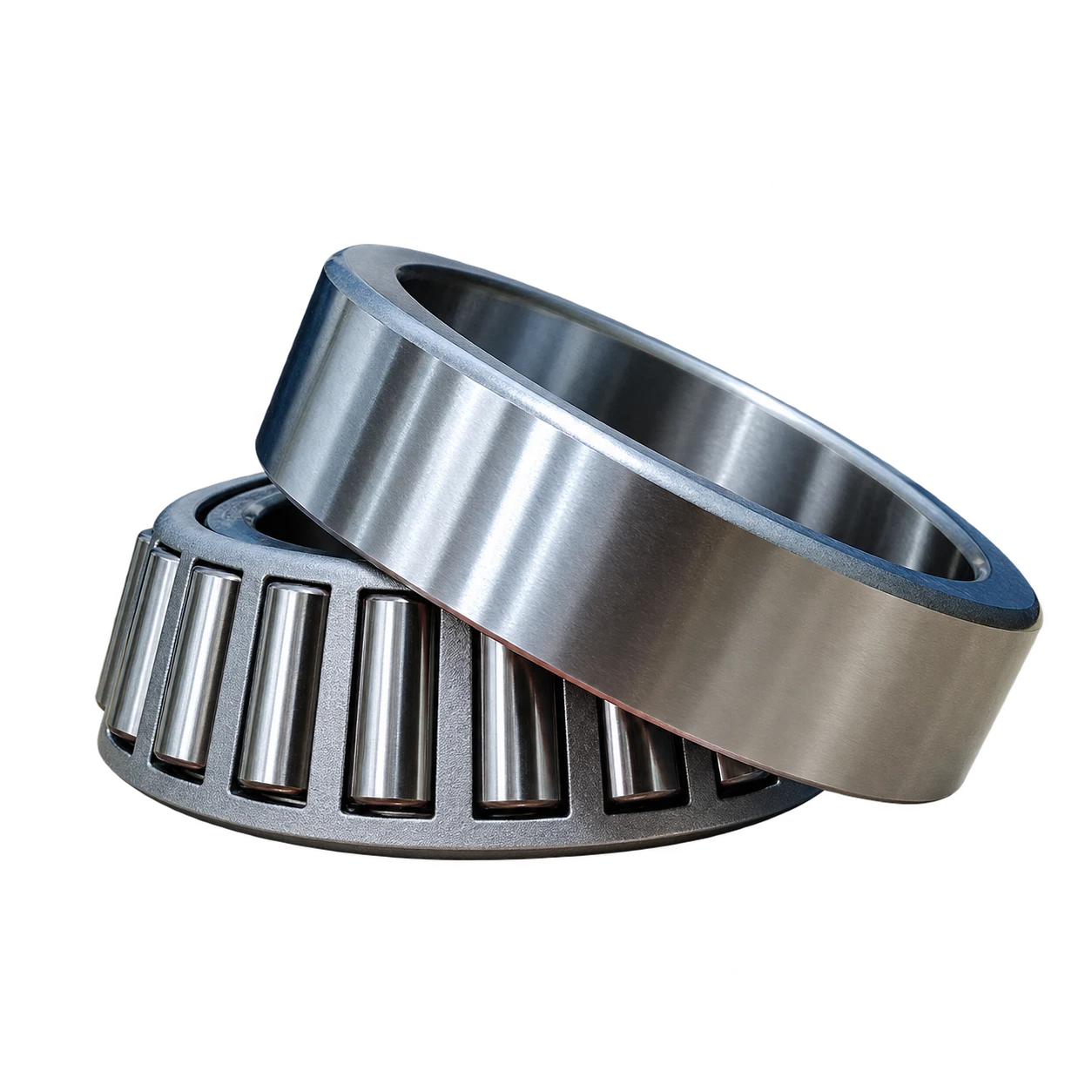

30217 tapered roller bearing — retouched source reference image; supply configuration may differ — AI-retouched source reference image. Packaging and marks removed; configuration may differ from SANJ supply.

30217 dimensional schematic: bore 85 mm, outside diameter 150 mm, width 30.5 mm — Boundary dimension schematic · not a manufacturing drawing · not to scale

Tapered Roller Bearings

30217 at a glance

30217 identifies a tapered roller bearing reference with 85 mm bore, 150 mm outside diameter and 30.5 mm overall width or height.

Bore / d: 85 mm
Outside / D: 150 mm
Width / T: 30.5 mm

Tapered rollers carry combined radial and axial load. Confirm cone and cup designations, overall width and arrangement before selecting a replacement.

Enquire about 30217 ↗Download reference data ↓

Reference configuration: 30217JR
Ratings below belong to the identified JTEKT / Koyo source record. SANJ material, internal design, performance and supply scope require a confirmed quotation and datasheet.

TECHNICAL SOURCEJTEKT / Koyo · 30217JR ↗Source checked 2026-10-20Reference image source ↗

REFERENCE SPECIFICATION

All the details.
One clear source.

Full factual values from the source designation 30217JR. Mounting dimensions and reference mass relate to that design; they must be checked against the final SANJ drawing.

Load ratings: kN · dimensions: mm · speed: min⁻¹ · mass: kg

30217 — JTEKT / Koyo reference data
Parameter	Reference value
d	85 mm
D	150 mm
T	30.5 mm
B	28 mm
C	24 mm
r(min.)	2.5 mm
r1(min.)	2 mm
Basic load ratings : Cr	228 kN
Basic load ratings : C0r	231 kN
Fatigue load limit : Cu	35.1 kN
Limiting speeds(Grease lub.)	2500 min-1
Limiting speeds(Oil lub.)	3400 min-1
Load center spread : a	30.4 mm
Constant e	0.42
Axial load factors : Y1	1.43
Axial load factors : Y0	0.79
da(min.)	97 mm
db(max.)	97 mm
Da(max.)	140 mm
da(min.)	132 mm
db(min.)	141 mm
Sa(min.)	5 mm
Sb(min.)	6.5 mm
ra(max.)	2 mm
rb(max.)	2 mm
Mass(Refer.)	2.17 kg

SELECTION CONTEXT

Match the bearing
to its duty.

30217 belongs to the tapered roller bearings family. Its reference envelope is 85 mm bore, 150 mm outside diameter and 30.5 mm overall width or height.

Tapered rollers carry combined radial and axial load. Confirm cone and cup designations, overall width and arrangement before selecting a replacement.

For a manufacturing enquiry, provide the complete designation and operating conditions. Matching the dimensional envelope alone does not confirm interchangeability or equivalent performance.

Is the same size a direct replacement?

No. Matching 85 × 150 × 30.5 mm establishes the boundary dimensions. The full designation, tolerances, clearance, contact angle or roller arrangement, seals, cage, lubrication and performance must also be checked.

Understand bearing load ratings →

PREPARE A USEFUL ENQUIRY

Specify what the model
number leaves open.

A complete brief reduces assumptions and gives the quotation a clear technical basis.

Configuration

Full designation, seals or shields, accuracy, clearance, cage, material and any matched arrangement.

Operating duty

Radial and axial loads, speed, temperature, lubrication, fits, environment and expected service.

Supply requirement

Quantity, destination, packing, inspection records, drawing approval and delivery requirement.
