BEARING SPECIFICATION / 30214

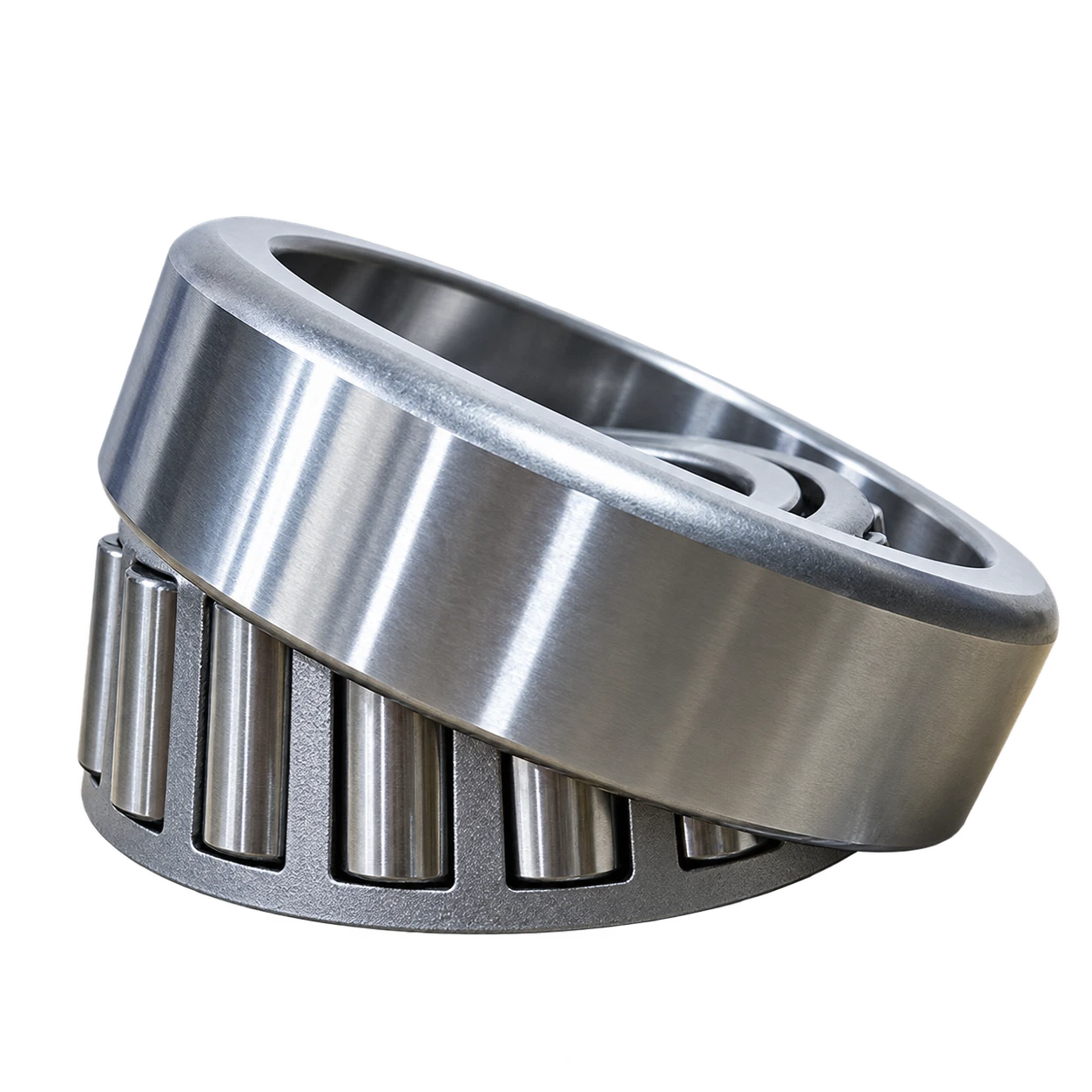

30214 Tapered Roller Bearing
70 × 125 × 26.25 mm · A focused approach to combined load. Compare the sourced reference data and specify your SANJ requirement.
Tapered Roller Bearings
30214 at a glance
30214 identifies a tapered roller bearing reference with 70 mm bore, 125 mm outside diameter and 26.25 mm overall width or height.
- Bore / d
- 70 mm
- Outside / D
- 125 mm
- Width / T
- 26.25 mm
Tapered rollers carry combined radial and axial load. Confirm cone and cup designations, overall width and arrangement before selecting a replacement.
Reference configuration: 30214JR
Ratings below belong to the identified JTEKT / Koyo source record. SANJ material, internal design, performance and supply scope require a confirmed quotation and datasheet.
Ratings below belong to the identified JTEKT / Koyo source record. SANJ material, internal design, performance and supply scope require a confirmed quotation and datasheet.
REFERENCE SPECIFICATION
All the details.
One clear source.
Full factual values from the source designation 30214JR. Mounting dimensions and reference mass relate to that design; they must be checked against the final SANJ drawing.
Load ratings: kN · dimensions: mm · speed: min⁻¹ · mass: kg
| Parameter | Reference value |
|---|---|
| d | 70 mm |
| D | 125 mm |
| T | 26.25 mm |
| B | 24 mm |
| C | 21 mm |
| r(min.) | 2 mm |
| r1(min.) | 1.5 mm |
| Basic load ratings : Cr | 173 kN |
| Basic load ratings : C0r | 173 kN |
| Fatigue load limit : Cu | 27.1 kN |
| Limiting speeds(Grease lub.) | 3100 min-1 |
| Limiting speeds(Oil lub.) | 4100 min-1 |
| Load center spread : a | 25.9 mm |
| Constant e | 0.42 |
| Axial load factors : Y1 | 1.43 |
| Axial load factors : Y0 | 0.79 |
| da(min.) | 80 mm |
| db(max.) | 81 mm |
| Da(max.) | 116.5 mm |
| da(min.) | 110 mm |
| db(min.) | 118 mm |
| Sa(min.) | 4 mm |
| Sb(min.) | 5 mm |
| ra(max.) | 2 mm |
| rb(max.) | 1.5 mm |
| Mass(Refer.) | 1.32 kg |
SELECTION CONTEXT
Match the bearing
to its duty.
30214 belongs to the tapered roller bearings family. Its reference envelope is 70 mm bore, 125 mm outside diameter and 26.25 mm overall width or height.
Tapered rollers carry combined radial and axial load. Confirm cone and cup designations, overall width and arrangement before selecting a replacement.
For a manufacturing enquiry, provide the complete designation and operating conditions. Matching the dimensional envelope alone does not confirm interchangeability or equivalent performance.
Is the same size a direct replacement?
No. Matching 70 × 125 × 26.25 mm establishes the boundary dimensions. The full designation, tolerances, clearance, contact angle or roller arrangement, seals, cage, lubrication and performance must also be checked.
Understand bearing load ratings →PREPARE A USEFUL ENQUIRY
Specify what the model
number leaves open.
A complete brief reduces assumptions and gives the quotation a clear technical basis.
Operating duty
Radial and axial loads, speed, temperature, lubrication, fits, environment and expected service.
Supply requirement
Quantity, destination, packing, inspection records, drawing approval and delivery requirement.
