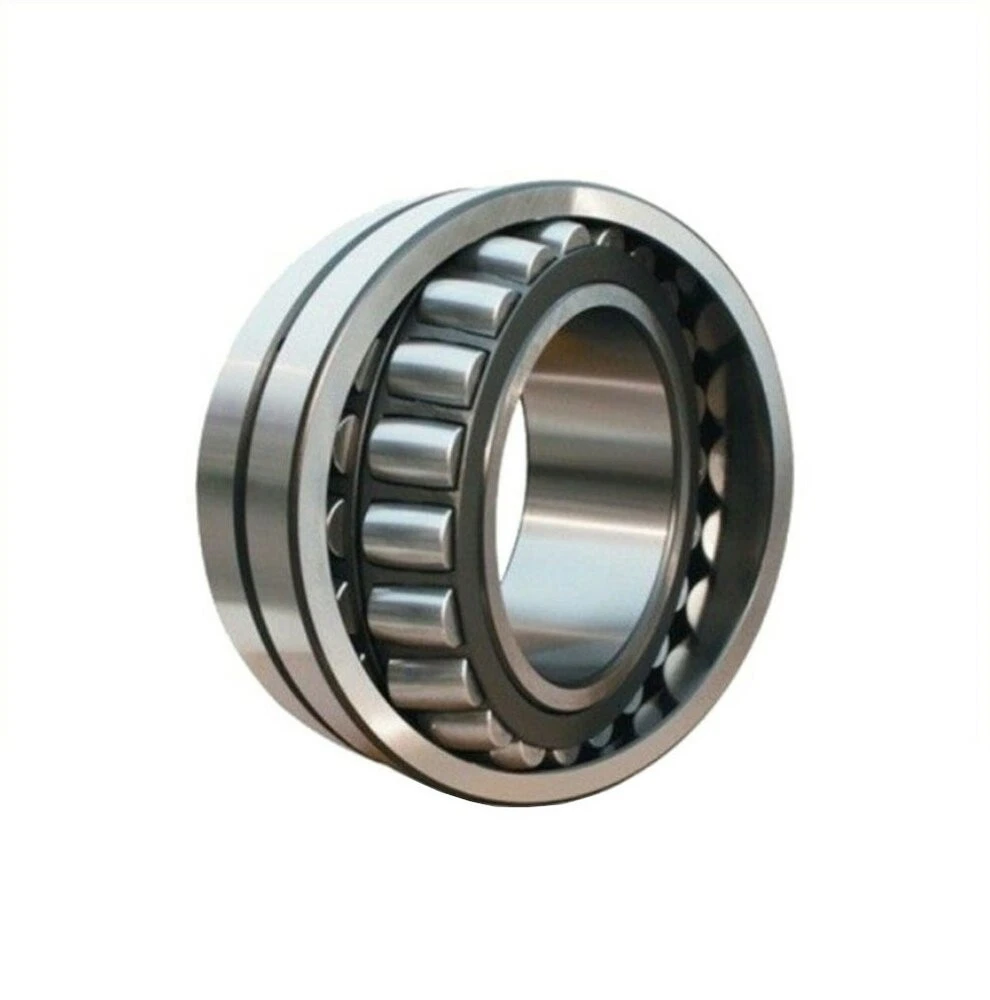

Original unbranded spherical roller bearing concept visualization

BEARING SPECIFICATION / 22318

22318 Spherical Roller Bearing

90 × 190 × 64 mm · Heavy radial duty with alignment flexibility. Compare the sourced reference data and specify your SANJ requirement.

Original product concept visualization

22318 dimensional schematic: bore 90 mm, outside diameter 190 mm, width 64 mm — Boundary dimension schematic · not a manufacturing drawing · not to scale

Spherical Roller Bearings

22318 at a glance

22318 identifies a spherical roller bearing reference with 90 mm bore, 190 mm outside diameter and 64 mm overall width or height.

Bore / d: 90 mm
Outside / D: 190 mm
Width / B: 64 mm

Two rows of spherical rollers accommodate angular misalignment within the selected design limits. Bore type, clearance and mounting method matter.

Enquire about 22318 ↗Download reference data ↓

Reference configuration: 22318RZ
Ratings below belong to the identified JTEKT / Koyo source record. SANJ material, internal design, performance and supply scope require a confirmed quotation and datasheet.

TECHNICAL SOURCEJTEKT / Koyo · 22318RZ ↗Source checked 2026-10-20Reference image source ↗

REFERENCE SPECIFICATION

All the details.
One clear source.

Full factual values from the source designation 22318RZ. Mounting dimensions and reference mass relate to that design; they must be checked against the final SANJ drawing.

Load ratings: kN · dimensions: mm · speed: min⁻¹ · mass: kg

22318 — JTEKT / Koyo reference data
Parameter	Reference value
d	90 mm
D	190 mm
B	64 mm
r(min.)	3 mm
Basic load ratings : Cr	672 kN
Basic load ratings : C0r	662 kN
Fatigue load limit : Cu	50.5 kN
Limiting speeds(Grease lub.)	2600 min-1
Limiting speeds(Oil lub.)	3400 min-1
Constant e	0.34
Axial load factors : Y1	2.00
Axial load factors : Y2	2.98
Axial load factors : Y0	1.96
da(min.)	104 mm
Da(max.)	176 mm
ra(max.)	2.5 mm
Mass(Refer.)	8.82 kg

SELECTION CONTEXT

Match the bearing
to its duty.

22318 belongs to the spherical roller bearings family. Its reference envelope is 90 mm bore, 190 mm outside diameter and 64 mm overall width or height.

Two rows of spherical rollers accommodate angular misalignment within the selected design limits. Bore type, clearance and mounting method matter.

For a manufacturing enquiry, provide the complete designation and operating conditions. Matching the dimensional envelope alone does not confirm interchangeability or equivalent performance.

Is the same size a direct replacement?

No. Matching 90 × 190 × 64 mm establishes the boundary dimensions. The full designation, tolerances, clearance, contact angle or roller arrangement, seals, cage, lubrication and performance must also be checked.

Understand bearing load ratings →

PREPARE A USEFUL ENQUIRY

Specify what the model
number leaves open.

A complete brief reduces assumptions and gives the quotation a clear technical basis.

Configuration

Full designation, seals or shields, accuracy, clearance, cage, material and any matched arrangement.

Operating duty

Radial and axial loads, speed, temperature, lubrication, fits, environment and expected service.

Supply requirement

Quantity, destination, packing, inspection records, drawing approval and delivery requirement.
