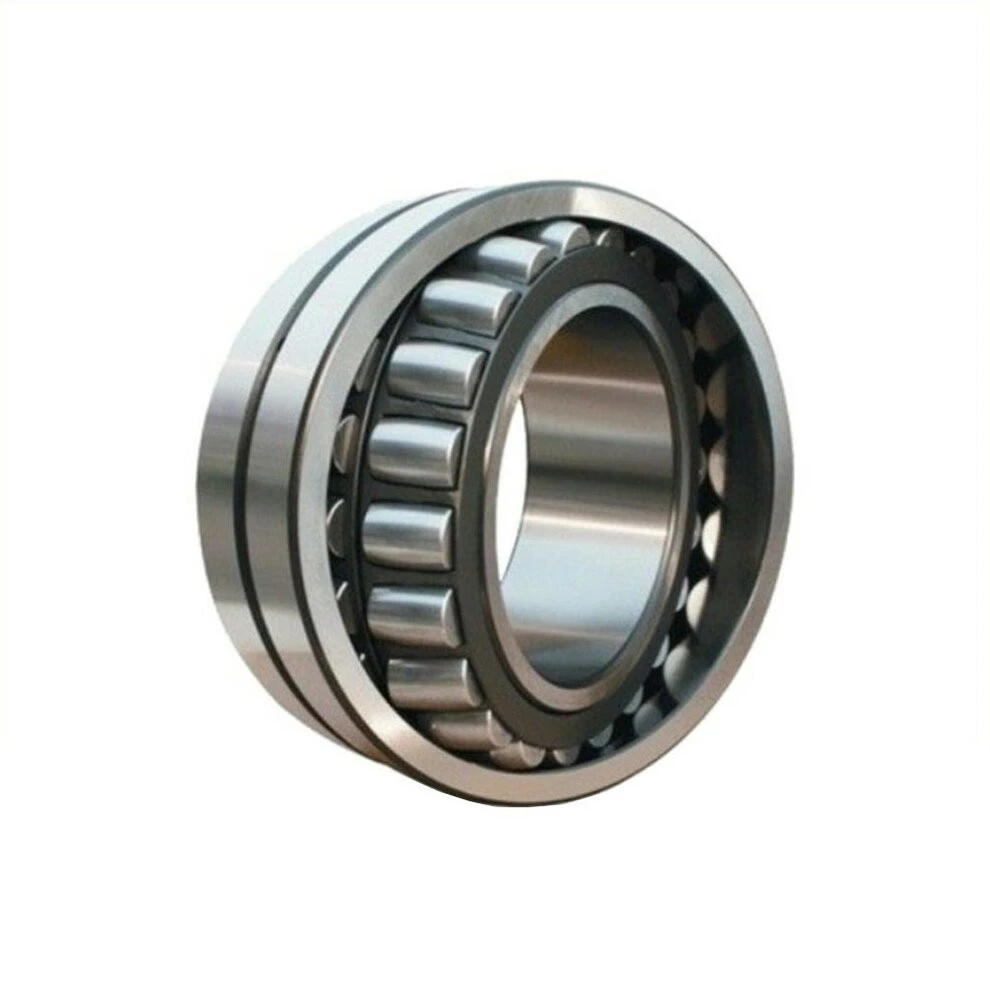

Original unbranded spherical roller bearing concept visualization

BEARING SPECIFICATION / 22315

22315 Spherical Roller Bearing

75 × 160 × 55 mm · Heavy radial duty with alignment flexibility. Compare the sourced reference data and specify your SANJ requirement.

Original product concept visualization

22315 dimensional schematic: bore 75 mm, outside diameter 160 mm, width 55 mm — Boundary dimension schematic · not a manufacturing drawing · not to scale

Spherical Roller Bearings

22315 at a glance

22315 identifies a spherical roller bearing reference with 75 mm bore, 160 mm outside diameter and 55 mm overall width or height.

Bore / d: 75 mm
Outside / D: 160 mm
Width / B: 55 mm

Two rows of spherical rollers accommodate angular misalignment within the selected design limits. Bore type, clearance and mounting method matter.

Enquire about 22315 ↗Download reference data ↓

Reference configuration: 22315RZ
Ratings below belong to the identified JTEKT / Koyo source record. SANJ material, internal design, performance and supply scope require a confirmed quotation and datasheet.

TECHNICAL SOURCEJTEKT / Koyo · 22315RZ ↗Source checked 2026-10-20Reference image source ↗

REFERENCE SPECIFICATION

All the details.
One clear source.

Full factual values from the source designation 22315RZ. Mounting dimensions and reference mass relate to that design; they must be checked against the final SANJ drawing.

Load ratings: kN · dimensions: mm · speed: min⁻¹ · mass: kg

22315 — JTEKT / Koyo reference data
Parameter	Reference value
d	75 mm
D	160 mm
B	55 mm
r(min.)	2.1 mm
Basic load ratings : Cr	492 kN
Basic load ratings : C0r	473 kN
Fatigue load limit : Cu	38.4 kN
Limiting speeds(Grease lub.)	3000 min-1
Limiting speeds(Oil lub.)	4100 min-1
Constant e	0.35
Axial load factors : Y1	1.95
Axial load factors : Y2	2.90
Axial load factors : Y0	1.91
da(min.)	87 mm
Da(max.)	148 mm
ra(max.)	2 mm
Mass(Refer.)	5.45 kg

SELECTION CONTEXT

Match the bearing
to its duty.

22315 belongs to the spherical roller bearings family. Its reference envelope is 75 mm bore, 160 mm outside diameter and 55 mm overall width or height.

Two rows of spherical rollers accommodate angular misalignment within the selected design limits. Bore type, clearance and mounting method matter.

For a manufacturing enquiry, provide the complete designation and operating conditions. Matching the dimensional envelope alone does not confirm interchangeability or equivalent performance.

Is the same size a direct replacement?

No. Matching 75 × 160 × 55 mm establishes the boundary dimensions. The full designation, tolerances, clearance, contact angle or roller arrangement, seals, cage, lubrication and performance must also be checked.

Understand bearing load ratings →

PREPARE A USEFUL ENQUIRY

Specify what the model
number leaves open.

A complete brief reduces assumptions and gives the quotation a clear technical basis.

Configuration

Full designation, seals or shields, accuracy, clearance, cage, material and any matched arrangement.

Operating duty

Radial and axial loads, speed, temperature, lubrication, fits, environment and expected service.

Supply requirement

Quantity, destination, packing, inspection records, drawing approval and delivery requirement.

22315 Spherical Roller Bearing

22315 at a glance

All the details.One clear source.

Match the bearingto its duty.

Is the same size a direct replacement?

Specify what the modelnumber leaves open.

Configuration

Operating duty

Supply requirement
