BEARING SPECIFICATION / 22219

22219 Spherical Roller Bearing

95 × 170 × 43 mm · Heavy radial duty with alignment flexibility. Compare the sourced reference data and specify your SANJ requirement.

Original product concept visualization

22219 dimensional schematic: bore 95 mm, outside diameter 170 mm, width 43 mm — Boundary dimension schematic · not a manufacturing drawing · not to scale

Spherical Roller Bearings

22219 at a glance

22219 identifies a spherical roller bearing reference with 95 mm bore, 170 mm outside diameter and 43 mm overall width or height.

Bore / d: 95 mm
Outside / D: 170 mm
Width / B: 43 mm

Two rows of spherical rollers accommodate angular misalignment within the selected design limits. Bore type, clearance and mounting method matter.

Enquire about 22219 ↗Download reference data ↓

Reference configuration: 22219RZ
Ratings below belong to the identified JTEKT / Koyo source record. SANJ material, internal design, performance and supply scope require a confirmed quotation and datasheet.

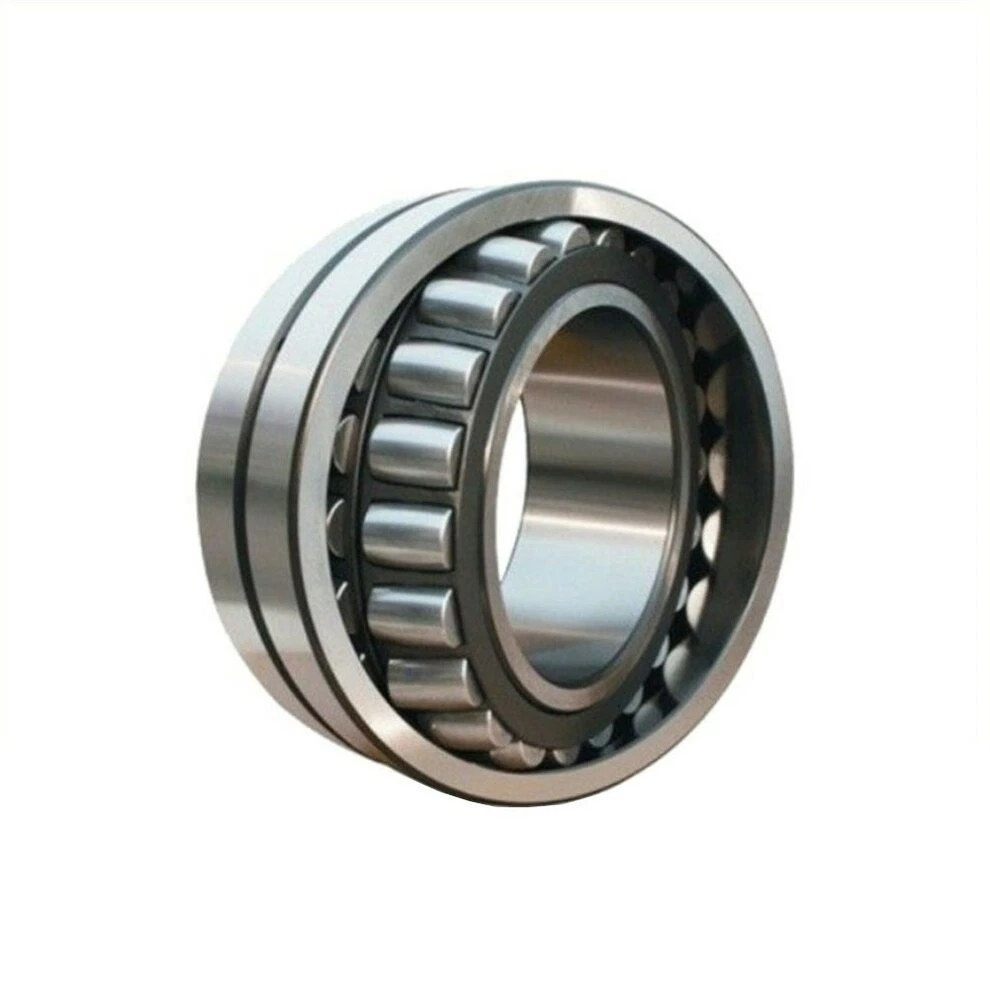

TECHNICAL SOURCEJTEKT / Koyo · 22219RZ ↗Source checked 2026-10-20Reference image source ↗

REFERENCE SPECIFICATION

All the details.
One clear source.

Full factual values from the source designation 22219RZ. Mounting dimensions and reference mass relate to that design; they must be checked against the final SANJ drawing.

Load ratings: kN · dimensions: mm · speed: min⁻¹ · mass: kg

22219 — JTEKT / Koyo reference data
Parameter	Reference value
d	95 mm
D	170 mm
B	43 mm
r(min.)	2.1 mm
Basic load ratings : Cr	417 kN
Basic load ratings : C0r	422 kN
Fatigue load limit : Cu	42.7 kN
Limiting speeds(Grease lub.)	2800 min-1
Limiting speeds(Oil lub.)	3600 min-1
Constant e	0.24
Axial load factors : Y1	2.76
Axial load factors : Y2	4.11
Axial load factors : Y0	2.70
da(min.)	107 mm
Da(max.)	158 mm
ra(max.)	2 mm
Mass(Refer.)	4.24 kg

SELECTION CONTEXT

Match the bearing
to its duty.

22219 belongs to the spherical roller bearings family. Its reference envelope is 95 mm bore, 170 mm outside diameter and 43 mm overall width or height.

Two rows of spherical rollers accommodate angular misalignment within the selected design limits. Bore type, clearance and mounting method matter.

For a manufacturing enquiry, provide the complete designation and operating conditions. Matching the dimensional envelope alone does not confirm interchangeability or equivalent performance.

Is the same size a direct replacement?

No. Matching 95 × 170 × 43 mm establishes the boundary dimensions. The full designation, tolerances, clearance, contact angle or roller arrangement, seals, cage, lubrication and performance must also be checked.

Understand bearing load ratings →

PREPARE A USEFUL ENQUIRY

Specify what the model
number leaves open.

A complete brief reduces assumptions and gives the quotation a clear technical basis.

Configuration

Full designation, seals or shields, accuracy, clearance, cage, material and any matched arrangement.

Operating duty

Radial and axial loads, speed, temperature, lubrication, fits, environment and expected service.

Supply requirement

Quantity, destination, packing, inspection records, drawing approval and delivery requirement.

22219 Spherical Roller Bearing

22219 at a glance

All the details.One clear source.

Match the bearingto its duty.

Is the same size a direct replacement?

Specify what the modelnumber leaves open.

Configuration

Operating duty

Supply requirement
