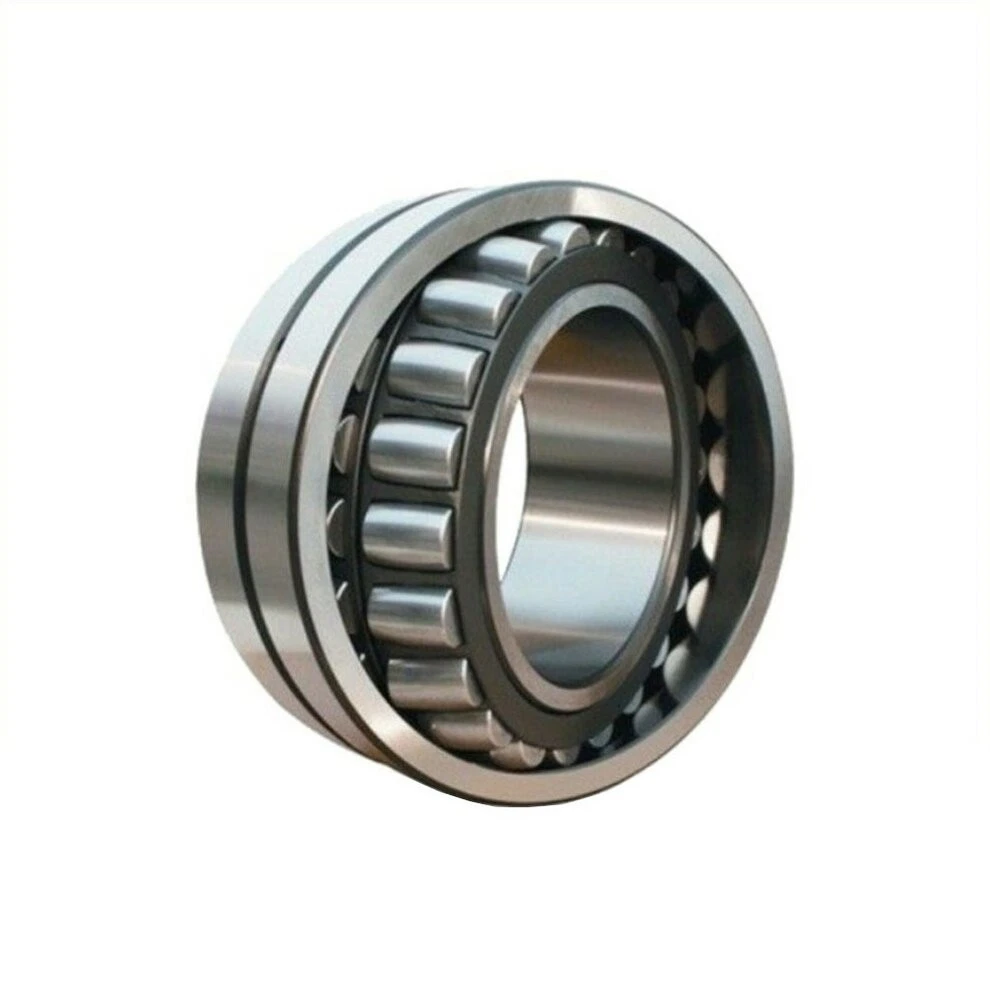

Original unbranded spherical roller bearing concept visualization

BEARING SPECIFICATION / 22212

22212 Spherical Roller Bearing

60 × 110 × 28 mm · Heavy radial duty with alignment flexibility. Compare the sourced reference data and specify your SANJ requirement.

Original product concept visualization

22212 dimensional schematic: bore 60 mm, outside diameter 110 mm, width 28 mm — Boundary dimension schematic · not a manufacturing drawing · not to scale

Spherical Roller Bearings

22212 at a glance

22212 identifies a spherical roller bearing reference with 60 mm bore, 110 mm outside diameter and 28 mm overall width or height.

Bore / d: 60 mm
Outside / D: 110 mm
Width / B: 28 mm

Two rows of spherical rollers accommodate angular misalignment within the selected design limits. Bore type, clearance and mounting method matter.

Enquire about 22212 ↗Download reference data ↓

Reference configuration: 22212RZ
Ratings below belong to the identified JTEKT / Koyo source record. SANJ material, internal design, performance and supply scope require a confirmed quotation and datasheet.

TECHNICAL SOURCEJTEKT / Koyo · 22212RZ ↗Source checked 2026-10-20Reference image source ↗

REFERENCE SPECIFICATION

All the details.
One clear source.

Full factual values from the source designation 22212RZ. Mounting dimensions and reference mass relate to that design; they must be checked against the final SANJ drawing.

Load ratings: kN · dimensions: mm · speed: min⁻¹ · mass: kg

22212 — JTEKT / Koyo reference data
Parameter	Reference value
d	60 mm
D	110 mm
B	28 mm
r(min.)	1.5 mm
Basic load ratings : Cr	190 kN
Basic load ratings : C0r	181 kN
Fatigue load limit : Cu	18.7 kN
Limiting speeds(Grease lub.)	4300 min-1
Limiting speeds(Oil lub.)	5800 min-1
Constant e	0.25
Axial load factors : Y1	2.74
Axial load factors : Y2	4.08
Axial load factors : Y0	2.68
da(min.)	68.5 mm
Da(max.)	101.5 mm
ra(max.)	1.5 mm
Mass(Refer.)	1.19 kg

SELECTION CONTEXT

Match the bearing
to its duty.

22212 belongs to the spherical roller bearings family. Its reference envelope is 60 mm bore, 110 mm outside diameter and 28 mm overall width or height.

Two rows of spherical rollers accommodate angular misalignment within the selected design limits. Bore type, clearance and mounting method matter.

For a manufacturing enquiry, provide the complete designation and operating conditions. Matching the dimensional envelope alone does not confirm interchangeability or equivalent performance.

Is the same size a direct replacement?

No. Matching 60 × 110 × 28 mm establishes the boundary dimensions. The full designation, tolerances, clearance, contact angle or roller arrangement, seals, cage, lubrication and performance must also be checked.

Understand bearing load ratings →

PREPARE A USEFUL ENQUIRY

Specify what the model
number leaves open.

A complete brief reduces assumptions and gives the quotation a clear technical basis.

Configuration

Full designation, seals or shields, accuracy, clearance, cage, material and any matched arrangement.

Operating duty

Radial and axial loads, speed, temperature, lubrication, fits, environment and expected service.

Supply requirement

Quantity, destination, packing, inspection records, drawing approval and delivery requirement.
