BEARING SPECIFICATION / 22205

22205 Spherical Roller Bearing

25 × 52 × 18 mm · Heavy radial duty with alignment flexibility. Compare the sourced reference data and specify your SANJ requirement.

Original product concept visualization

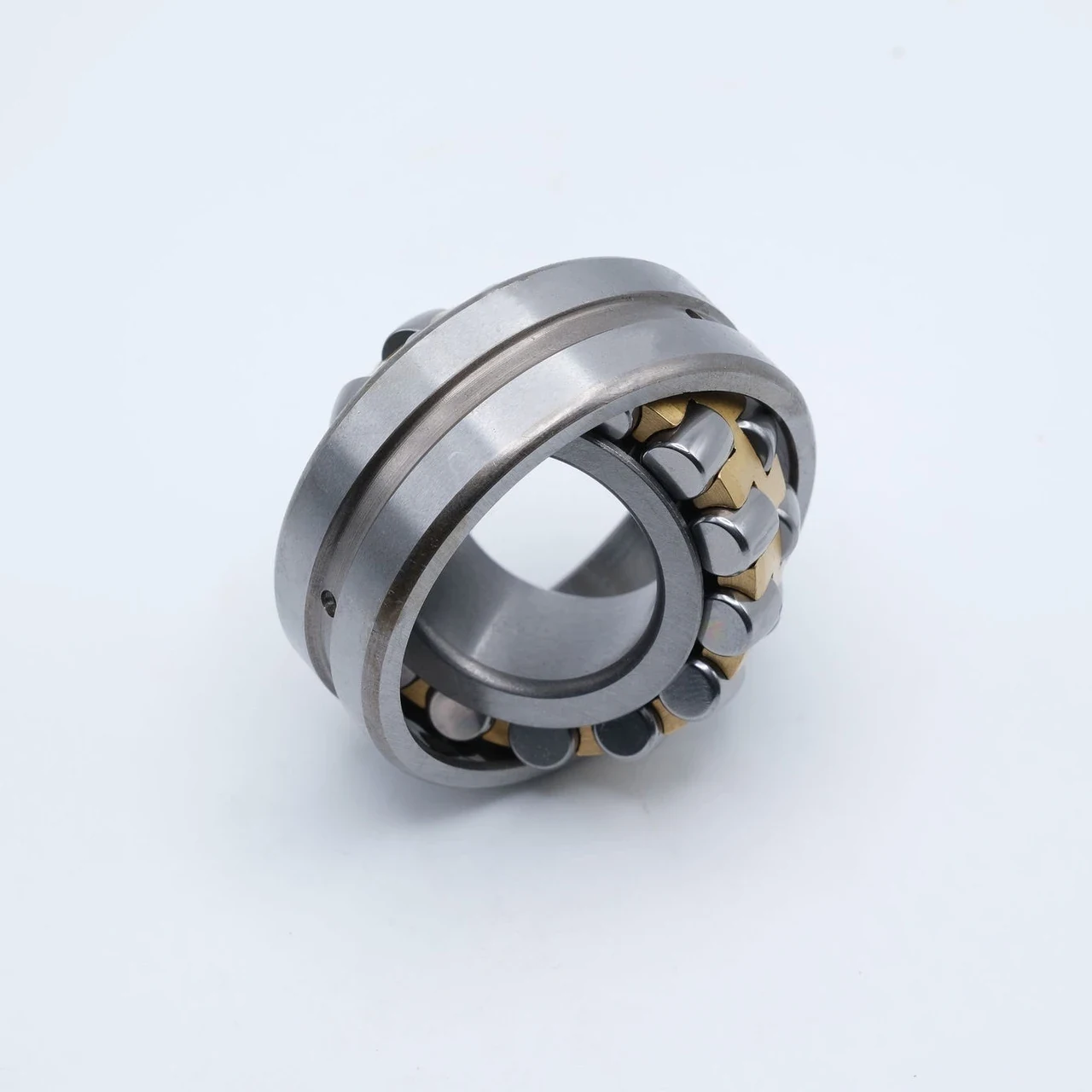

Unbranded reference photograph for 22205 bearing family; supply configuration may differ — Authorized source reference image. Seal, cage, material and internal configuration may differ from SANJ supply.

22205 dimensional schematic: bore 25 mm, outside diameter 52 mm, width 18 mm — Boundary dimension schematic · not a manufacturing drawing · not to scale

Spherical Roller Bearings

22205 at a glance

22205 identifies a spherical roller bearing reference with 25 mm bore, 52 mm outside diameter and 18 mm overall width or height.

Bore / d: 25 mm
Outside / D: 52 mm
Width / B: 18 mm

Two rows of spherical rollers accommodate angular misalignment within the selected design limits. Bore type, clearance and mounting method matter.

Enquire about 22205 ↗Download reference data ↓

Reference configuration: 22205RZ
Ratings below belong to the identified JTEKT / Koyo source record. SANJ material, internal design, performance and supply scope require a confirmed quotation and datasheet.

TECHNICAL SOURCEJTEKT / Koyo · 22205RZ ↗Source checked 2026-10-20Reference image source ↗

REFERENCE SPECIFICATION

All the details.
One clear source.

Full factual values from the source designation 22205RZ. Mounting dimensions and reference mass relate to that design; they must be checked against the final SANJ drawing.

Load ratings: kN · dimensions: mm · speed: min⁻¹ · mass: kg

22205 — JTEKT / Koyo reference data
Parameter	Reference value
d	25 mm
D	52 mm
B	18 mm
r(min.)	1 mm
Basic load ratings : Cr	56.8 kN
Basic load ratings : C0r	48.1 kN
Fatigue load limit : Cu	3.90 kN
Limiting speeds(Grease lub.)	9600 min-1
Limiting speeds(Oil lub.)	12800 min-1
Constant e	0.35
Axial load factors : Y1	1.91
Axial load factors : Y2	2.85
Axial load factors : Y0	1.87
da(min.)	30.5 mm
Da(max.)	46.5 mm
ra(max.)	1 mm
Mass(Refer.)	0.188 kg

SELECTION CONTEXT

Match the bearing
to its duty.

22205 belongs to the spherical roller bearings family. Its reference envelope is 25 mm bore, 52 mm outside diameter and 18 mm overall width or height.

Two rows of spherical rollers accommodate angular misalignment within the selected design limits. Bore type, clearance and mounting method matter.

For a manufacturing enquiry, provide the complete designation and operating conditions. Matching the dimensional envelope alone does not confirm interchangeability or equivalent performance.

Is the same size a direct replacement?

No. Matching 25 × 52 × 18 mm establishes the boundary dimensions. The full designation, tolerances, clearance, contact angle or roller arrangement, seals, cage, lubrication and performance must also be checked.

Understand bearing load ratings →

PREPARE A USEFUL ENQUIRY

Specify what the model
number leaves open.

A complete brief reduces assumptions and gives the quotation a clear technical basis.

Configuration

Full designation, seals or shields, accuracy, clearance, cage, material and any matched arrangement.

Operating duty

Radial and axial loads, speed, temperature, lubrication, fits, environment and expected service.

Supply requirement

Quantity, destination, packing, inspection records, drawing approval and delivery requirement.
